ROBOT WELDING MACHINES · INDUSTRIAL AUTOMATION SUPPLIER

High-Precision Robotic Welding for Smart Manufacturing

Accuracy · Efficiency · Stable 24/7 Production

Accuracy Efficiency Stable 24/7 Production

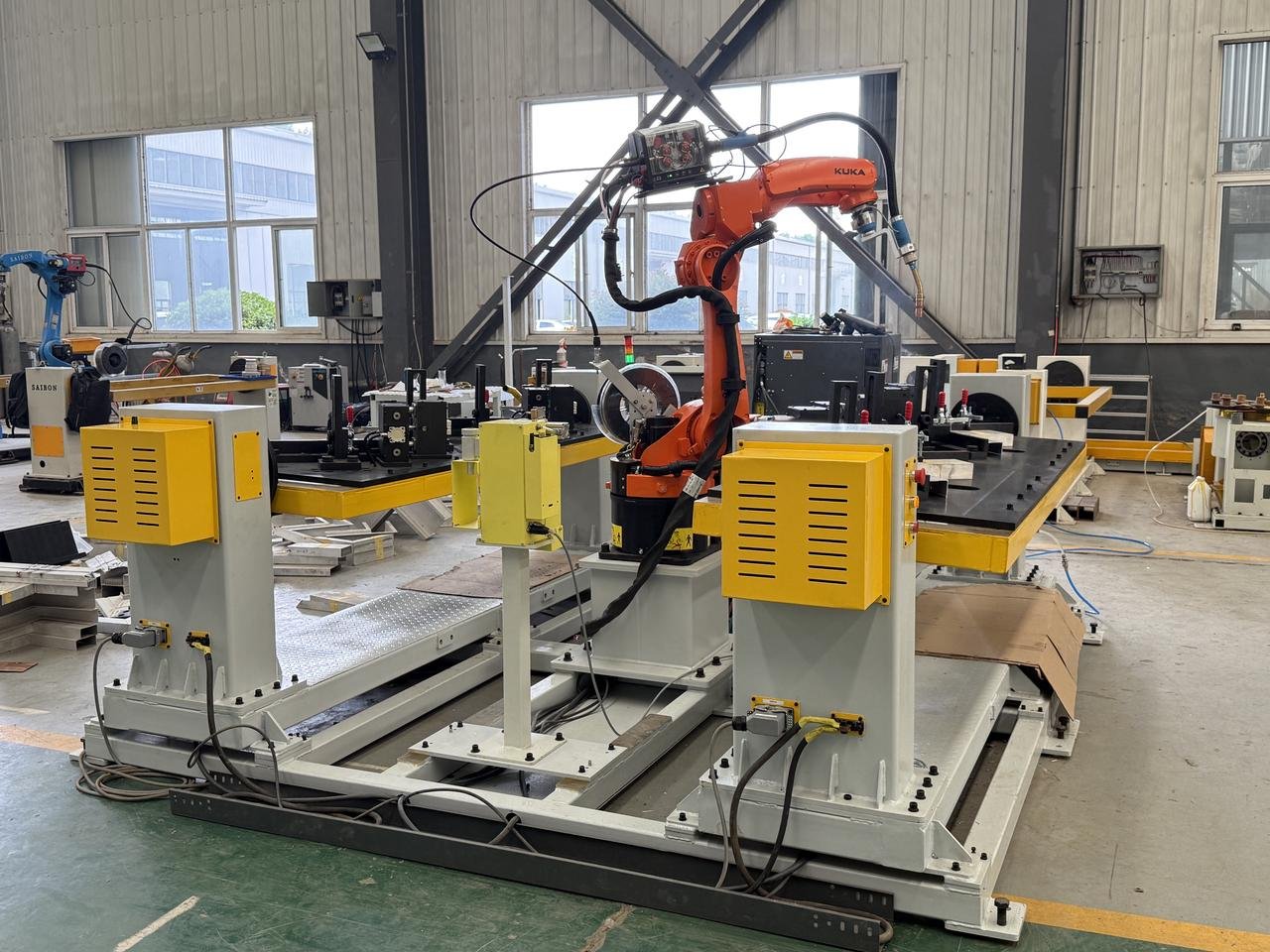

HORISTAR is a leading robot welding machine supplier, providing intelligent robotic welding solutions for manufacturers worldwide. By integrating internationally renowned robot brands with advanced welding systems and customized fixtures, HORISTAR robot welding machines deliver consistent weld quality, high repeatability, and reliable automation for both mass production and flexible small-batch manufacturing.

View Technical Specifications Request a Welding Solution

KEY COMPONENTS

Key Components of the HORISTAR Robot Welding Machine

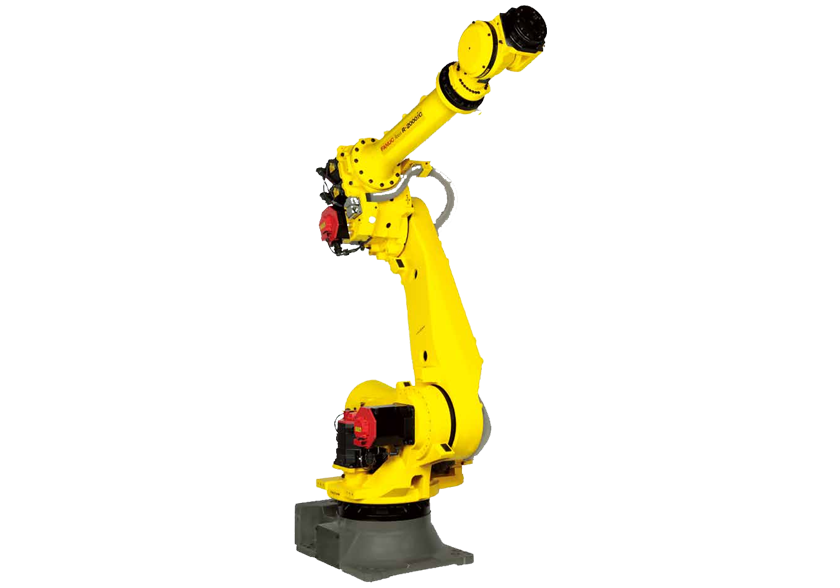

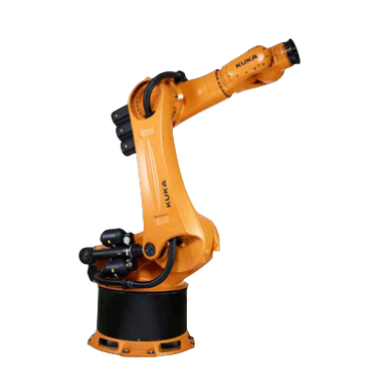

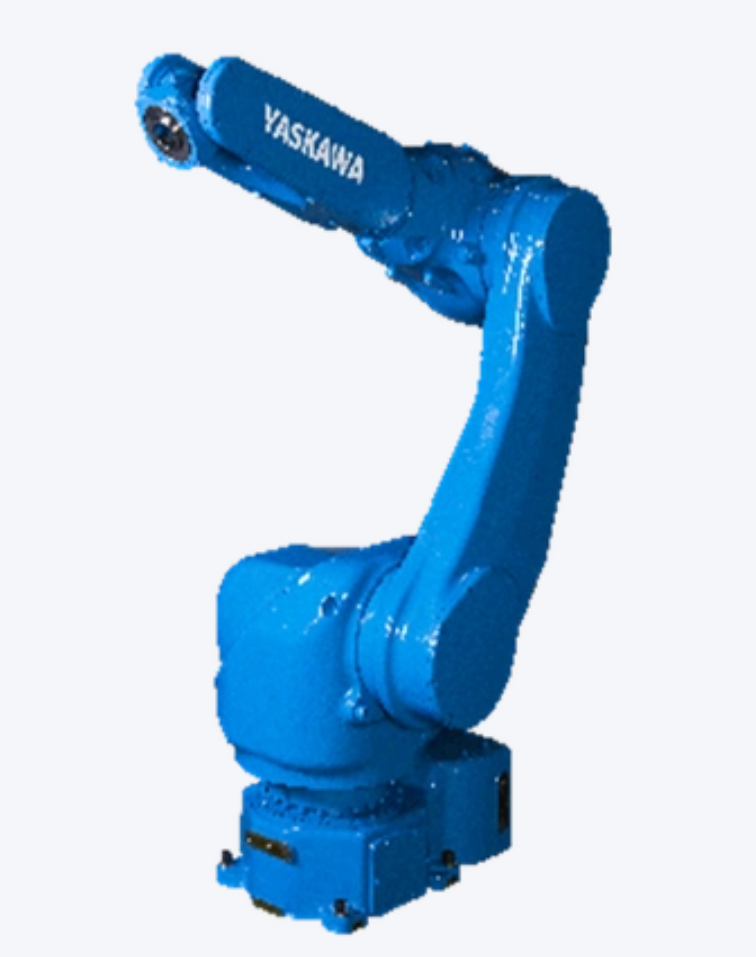

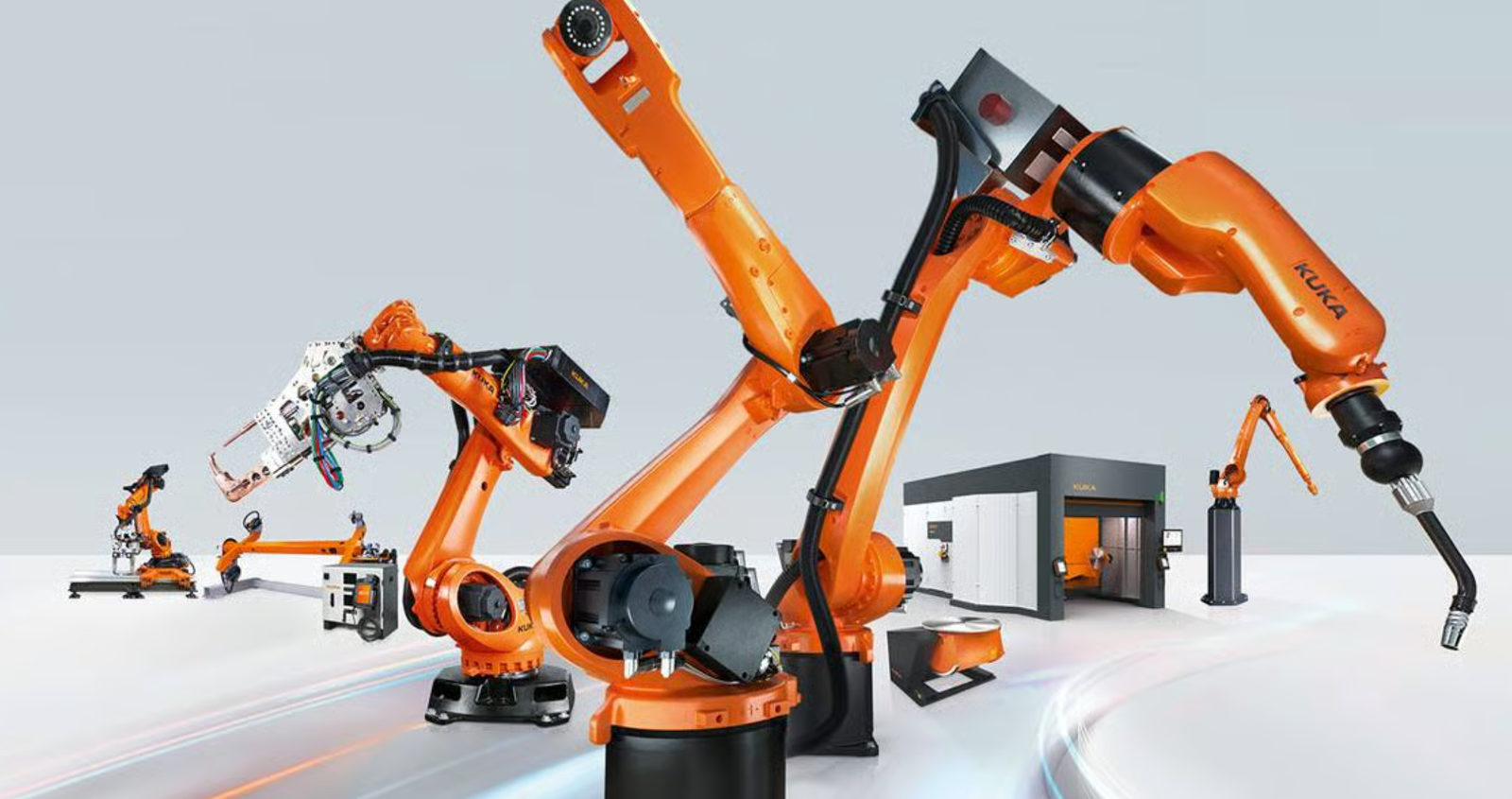

Industrial Automatic Robot

Internationally renowned robotic brands of ABB/FANUC/KUKA/YASKAWA/, featuring highly compact designs with flexible configuration options.

Rapid operational speeds and robust adaptability to diverse working environments.

Significantly enhances labour efficiency with uninterrupted continuous operation capability.

Substantially improves welding precision and quality, ensuring consistent product weld integrity.

Enhances the working environment for personnel.

Defined product lifecycles facilitate production planning.

Shortens product replacement cycles, reducing associated equipment investment costs.

Enables automated welding for small-batch production runs.

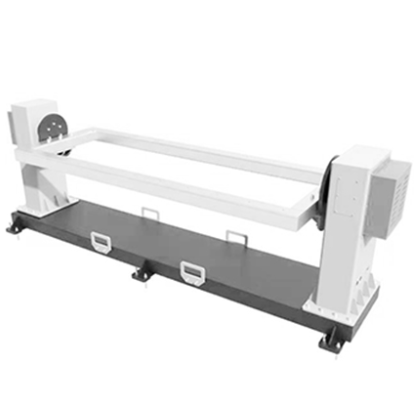

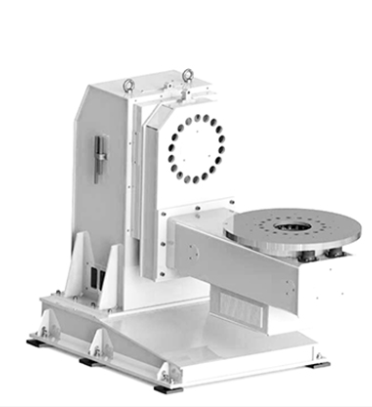

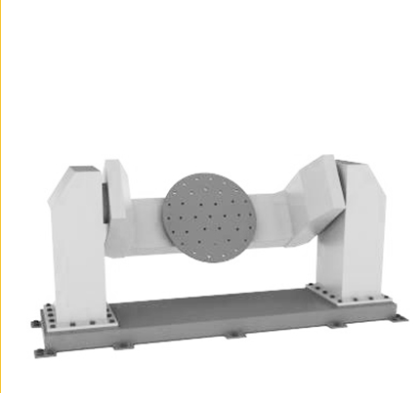

Frame Welding Positioner

Wide speed range with high-precision reducer for accurate control of flipping angle;

Integral frame constructed from premium-grade extruded sections, ensuring excellent structural rigidity;

Capable of flipping workpieces of varying dimensions and configurations;

Transmission chain incorporates automatic travel-locking drives to prevent accidents caused by gravity on welded components;

High repeatability positioning accuracy enables correction and compensation for complex weld seams;

Excellent impact resistance ensures stable flipping within load capacity;

Customised specialised fixtures tailored to client products guarantee welding stability.

TECHNICAL SPECIFICATIONS

Technical Parameters – Robot Welding Machine

HORISTAR's Robot Welding Machines are engineered for high performance. Key specifications include:

Power Range: Adjustable to suit various welding requirements
Welding Speed: High-speed tracking systems ensuring consistent seams
Operating Precision: ±0.1mm accuracy in positioning
Control System: Intelligent CNC interface with user-friendly operation
Cooling System: Integrated water cooling chiller helps to cool the power supply
Power Supply: Stable voltage protection with efficiency optimization for MIG, TIG. Etc of Germany brand
Suitable Materials: It could weld different materials like stainless, carbon steel, aluminum, brass and copper

Technical Specifications

Item	Specification
Model	RW-10
Rated Load Capacity	1000 kg
Wrist Rated Payload	10 kg
Maximum Working Radius	2018 mm
Positioner Rotation Diameter	1000 mm
Positioner Rotation Angle	±180°
Rated Rotation Speed	20°/s
Degrees of Freedom	6
Repeatability (Positioner)	±0.1 mm
Repeatability (Robot)	±0.05 mm
Positioner Axis Center Height	750 mm
Safe Rotation Height	150 mm
Power Supply	Three-phase 200 V, ±10%, 50 Hz
Insulation Class	Class H
Robot Weight	180 kg
Operating Temperature	0 ~ 40 °C

Joint Speed

Joint	Speed
J1	150°/s
J2	150°/s
J3	150°/s
J4	150°/s
J5	150°/s
J6	150°/s

Joint Motion Range

Joint	Range
J1	±165°
J2	+155° to −90°
J3	+85° to −185°
J4	±185°
J5	±120°
J6	±360°

Allowable Joint Load Torque

Joint	Torque
J4	33 Nm
J5	23.2 Nm
J6	7.5 Nm

Allowable Joint Load Inertia

Joint	Inertia
J4	0.9 kg·m²
J5	0.5 kg·m²
J6	0.15 kg·m²

KEY BENEFITS

Key Benefits of HORISTAR Robot Welding Machine

Investing in a HORISTAR Robot Welding Machine brings a powerful combination of precision, speed, and safety to your production line.

Sensing Technology

Automated positioning and assembly operations significantly enhance the operational performance and adaptability of robots.

Weld Seam Trajectory Tracking

Employs laser sensors to monitor the welding process, thereby improving welding precision.

System Optimisation

Utilises AC servo drive technology and high-precision reducers, supported by robust protective facilities, enabling maintenance-free operation.

Multi-Agent Control

Facilitates the coordination of multi-agent collective architectures and inter-agent communication.

INDUSTRY APPLICATIONS

Applications of
HORISTAR Robot Welding Machine

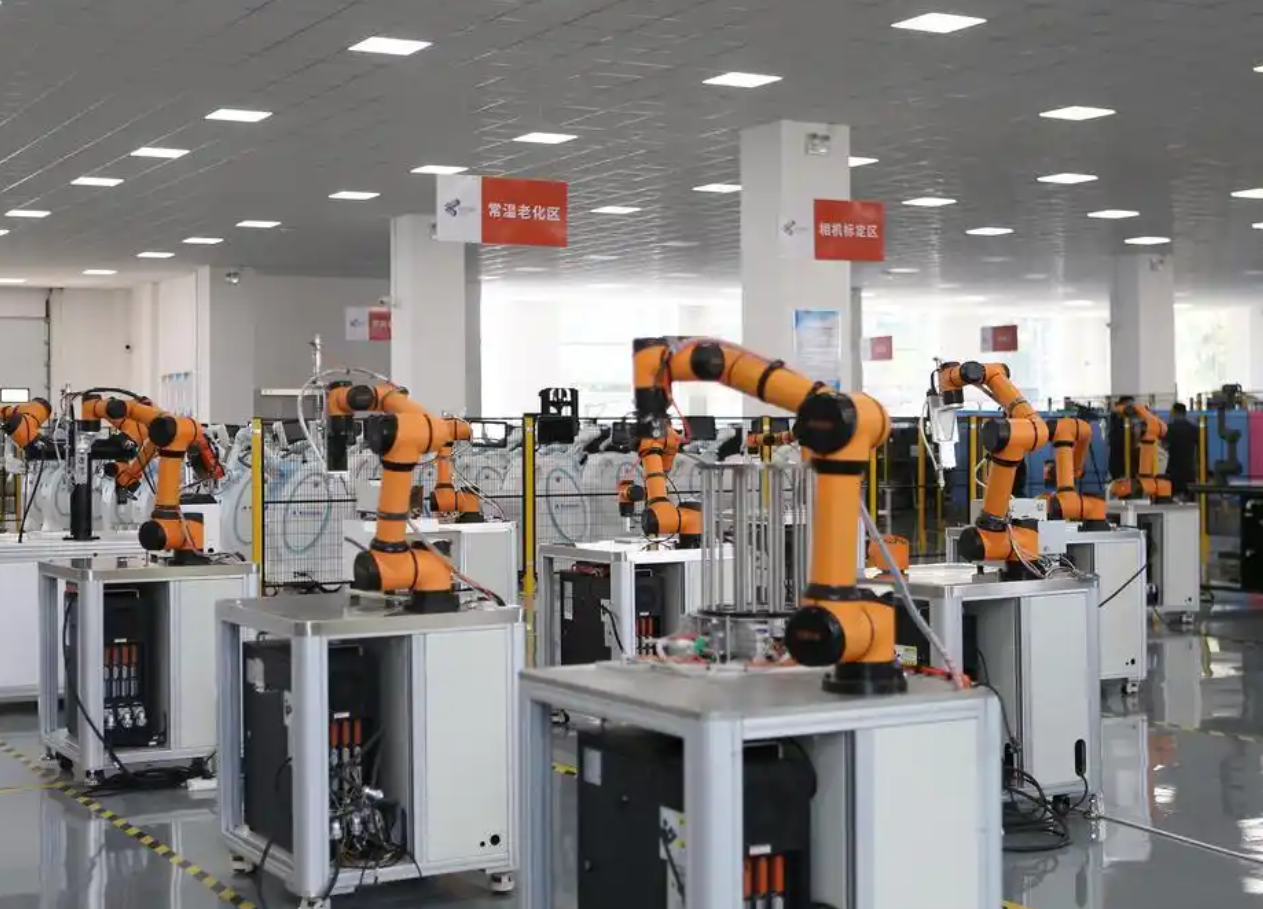

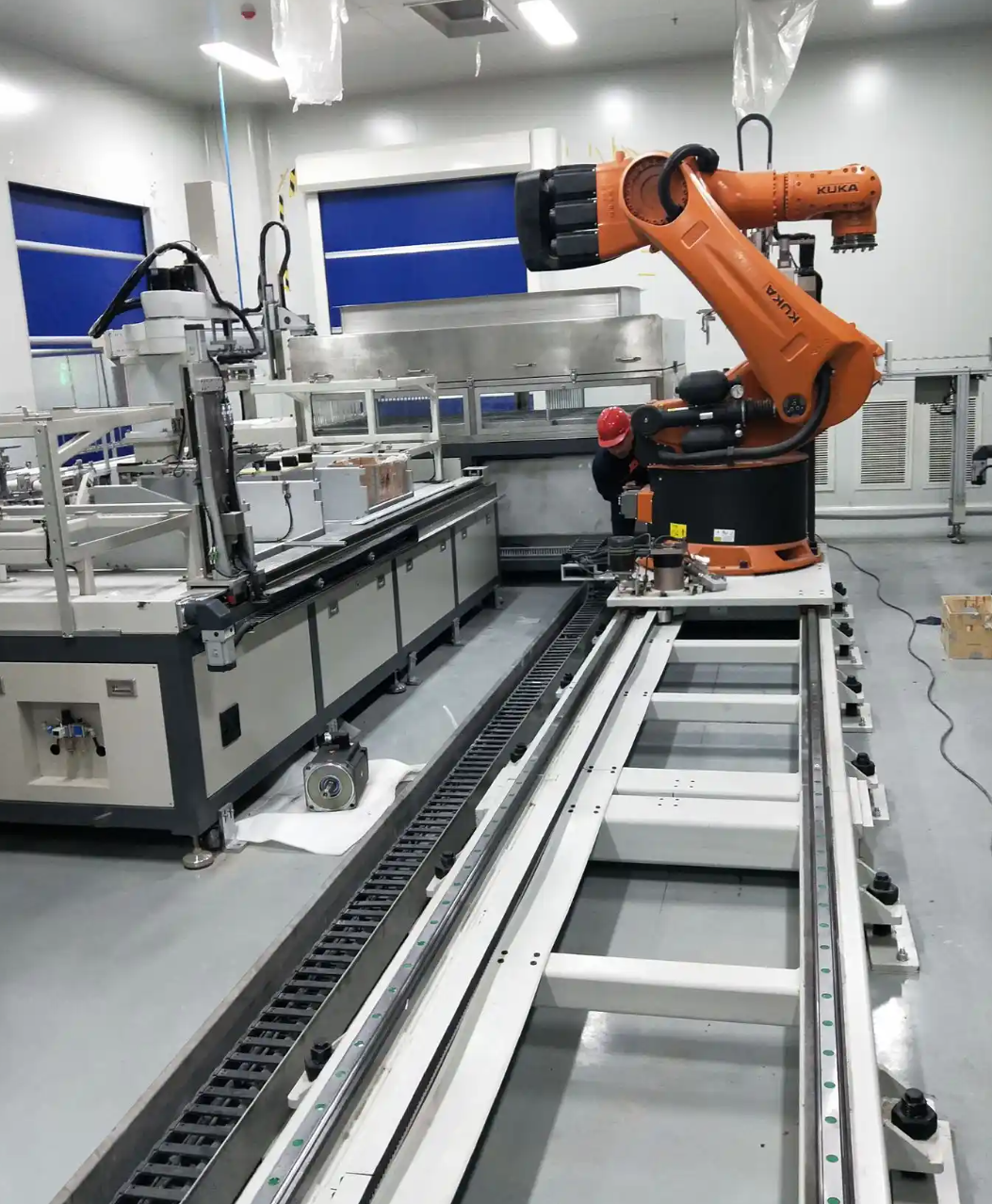

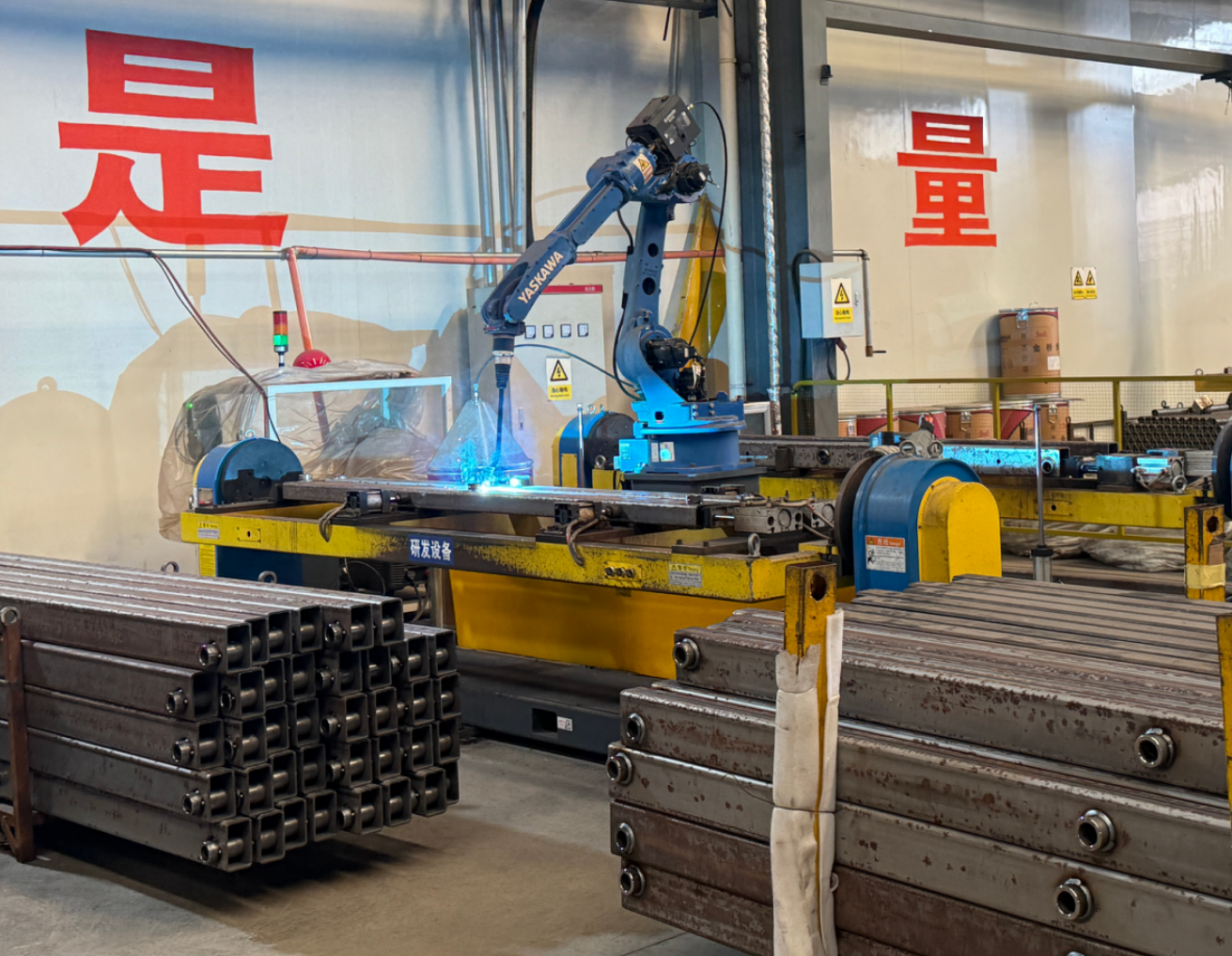

HORISTAR robot welding machines are widely applied across industries that demand high welding accuracy, stable quality, and continuous automated production.

Typical Application Industries Include:

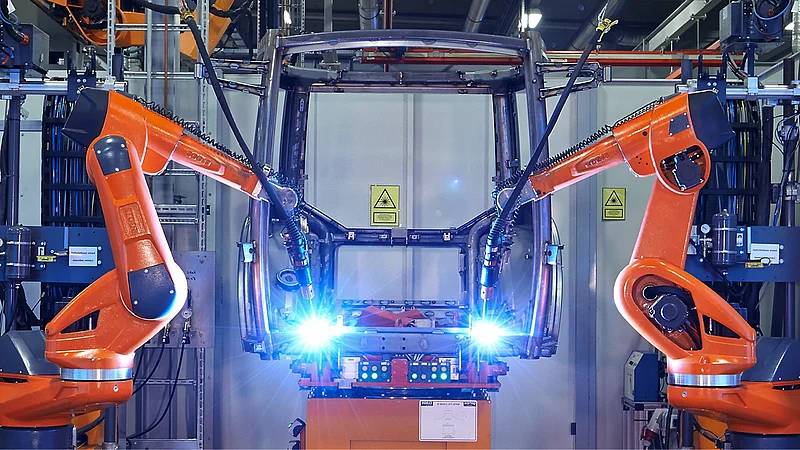

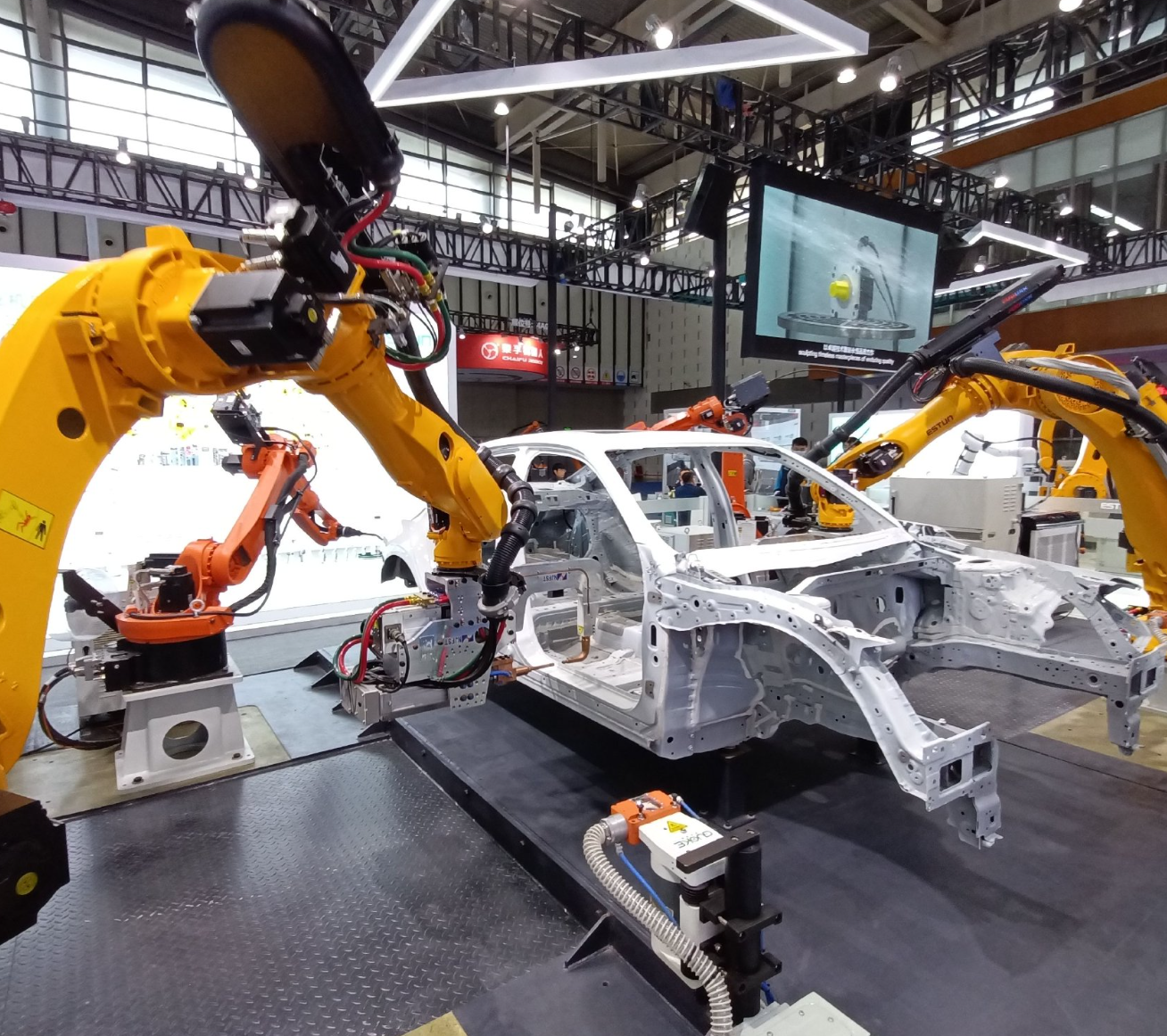

Automotive & Auto Parts Manufacturing

Chassis components, frames, brackets, and structural welding with high repeatability.

Machinery & Equipment Manufacturing

Precision welding of machine frames, housings, and functional metal parts.

Metal Fabrication & Steel Structures

Automated welding of beams, frames, and customized steel assemblies.

Construction & Engineering Equipment

Durable welds for heavy-duty components and load-bearing structures.

Agricultural Machinery

Stable and efficient welding for frames, arms, and complex assemblies.

Energy & Power Equipment

High-consistency welding for energy-related structural and mechanical parts.

WHY CHOOSE US

Why Choose HORISTAR as Your Robot Welding Machine Supplier

Choosing the right supplier is crucial for any manufacturing operation. HORISTAR stands out due to:

Bespoke Services

Tailor-made design solutions to meet specific client requirements, ensuring optimal fulfilment of operational needs.

Technical Support

Comprehensive pre-sales, during-sales and after-sales assistance from technical engineers, guaranteeing swift product deployment.

Innovative Design Updates

Continuously optimising hardware and software.

Global Standard Compliance

Meets ISO, CE, FDA, and various international safety certifications.

Reliable Production Planning

Strict adherence to delivery schedules with regular updates synchronising production progress.

Secure Global Shipping

Offering overseas clients enhanced safety and convenience through optimised packaging and transport procedures.

CUSTOMER FEEDBACK

Global Customer Feedback for HORISTAR Robot Welding Machine

Businesses worldwide consistently praise our dependability as a supplier of advanced robot Welding Machines:

Thanks to HORISTAR's cutting-edge welding solutions, our production speed has risen sharply, and the quality of our output has never been better. The return on investment was achieved in less than twelve months.

From our initial inquiry right through to installation, HORISTAR delivered outstanding support. The robot Welding Machine quickly proved to be an indispensable asset in our manufacturing process.
