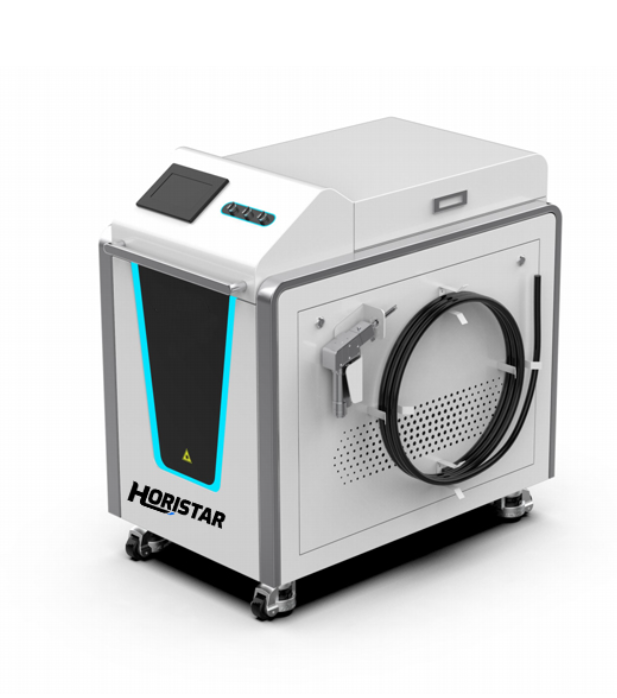

HORISTAR Handheld Laser Welding Machine
Precision, Speed & Versatility in One Compact Solution
Engineered for modern manufacturers, the HORISTAR Handheld Laser Welding Machine combines high-performance laser technology with an ergonomic, flexible design. It delivers clean, strong welds with minimal heat input—ideal for workshops, on-site operations, and production environments where efficiency and adaptability matter.
Precision, Efficiency & Adaptability
HORISTAR delivers professional CNC intelligent manufacturing equipment to industries worldwide, and our handheld Laser Welding Machine range is designed for customers who value precision, efficiency, and adaptability.
These advanced welding systems combine high-performance laser technology with ergonomic design, making them ideal for manufacturers seeking to save time, reduce costs, and achieve outstanding weld quality.
HORISTAR Handheld Laser Welding Machine — Technical Specifications
The HORISTAR handheld Laser Welding Machine is built for demanding welding environments, supporting multiple materials and thickness levels.
Main Parameters
| Model | HM-W1000 | HM-W1500 | HM-W2000 | HM-W3000 |
|---|---|---|---|---|
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Whole Machine Power | 6KW | 8KW | 10KW | 12KW |
| Working Type | Handheld | |||
| Function | Welding / Cleaning / Cutting | |||
| Working Voltage | 220V/380V ± 10% 50HZ/60HZ | |||
| Wavelength | 1080 ± 10nm | |||
| Cable Length | 10 meters (customizable) | |||
| Cooling Mode | Water Cooling | |||
Welding Parameters
| Model | Stainless Steel | Carbon Steel | Galvanized Sheet | Aluminum |
|---|---|---|---|---|
| HM-W3000 | 8mm | 8mm | 8mm | 6mm |
| HM-W2000 | 5mm | 5mm | 5mm | 5mm |
| HM-W1500 | 4mm | 4mm | 4mm | 4mm |
| HM-W1000 | 3mm | 3mm | 3mm | 3mm |
All specifications are subject to customization based on specific application requirements. Contact our technical team for detailed consultation.
Advantages of HORISTAR Handheld Laser Welding Machines
Our systems are designed for performance, efficiency, and long-term cost savings.
No Need for Fixed Welding Station
Saves space and installation costs
Beginner-Friendly Operation
No need for high-cost skilled welders; easy learning curve
Highly Adaptable
Works with complex angles and varying product shapes
Cost Efficiency
Low material waste, minimal energy consumption, reduced maintenance
Durability
Built to endure industrial conditions with minimal downtime
Fast Welding Speeds
Increases throughput capability significantly
Flexible Output
Equally suited to small repair work and large-scale manufacturing
Key Features of the HORISTAR Handheld Laser Welding Machine
Our handheld Laser Welding Machine is engineered with advanced build quality and an operator-friendly interface. Here's what sets it apart:

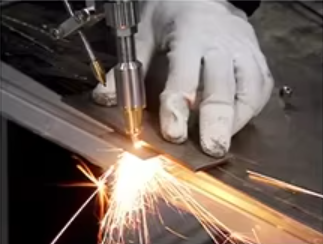

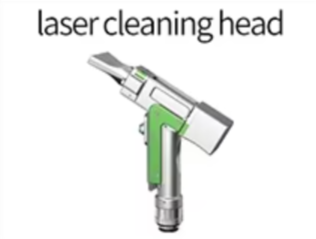

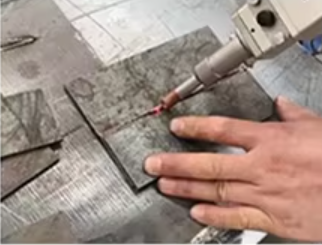

3-in-1 Functionality
- Welding, Cleaning, and Cutting integrated into one compact unit
- Quick function switching for maximum productivity
- Perfect for businesses needing versatile processing methods without separate machines

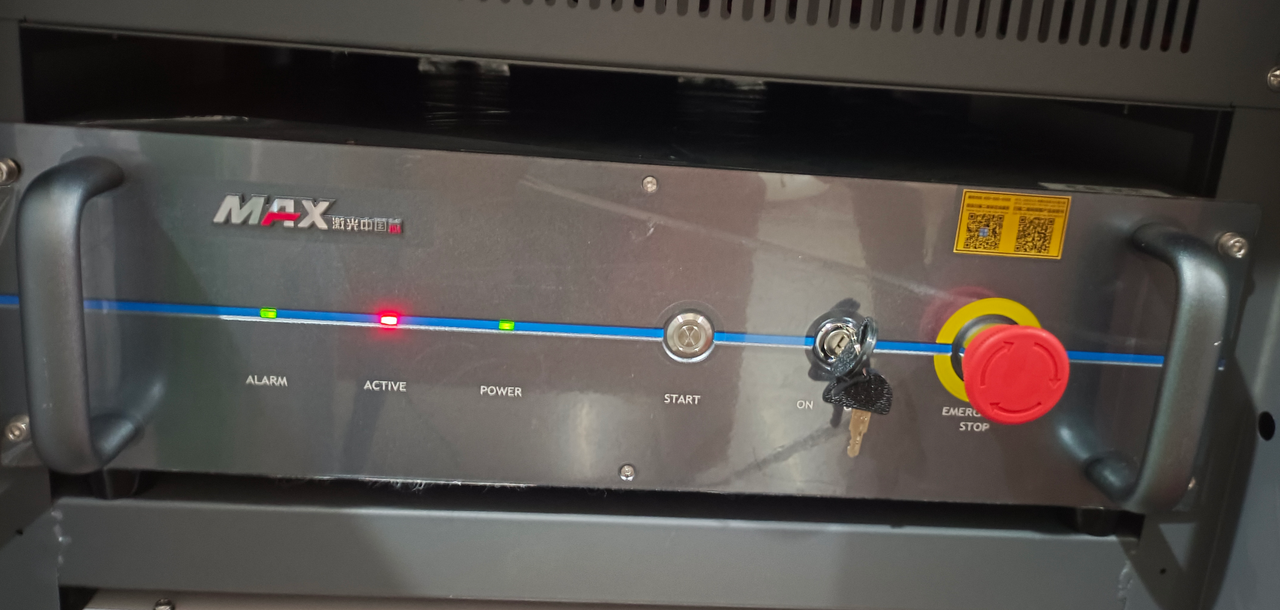

High-Performance Laser Source Options
- Raycus or MAX laser sources – globally recognised brands
- Excellent beam quality for smooth, strong welds
- Low failure rates with proven durability
- One-year global warranty included

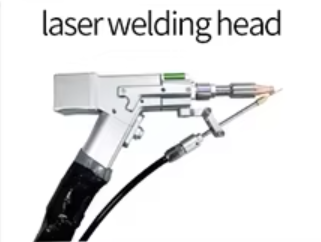

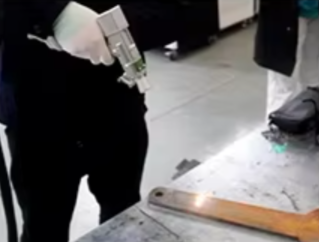

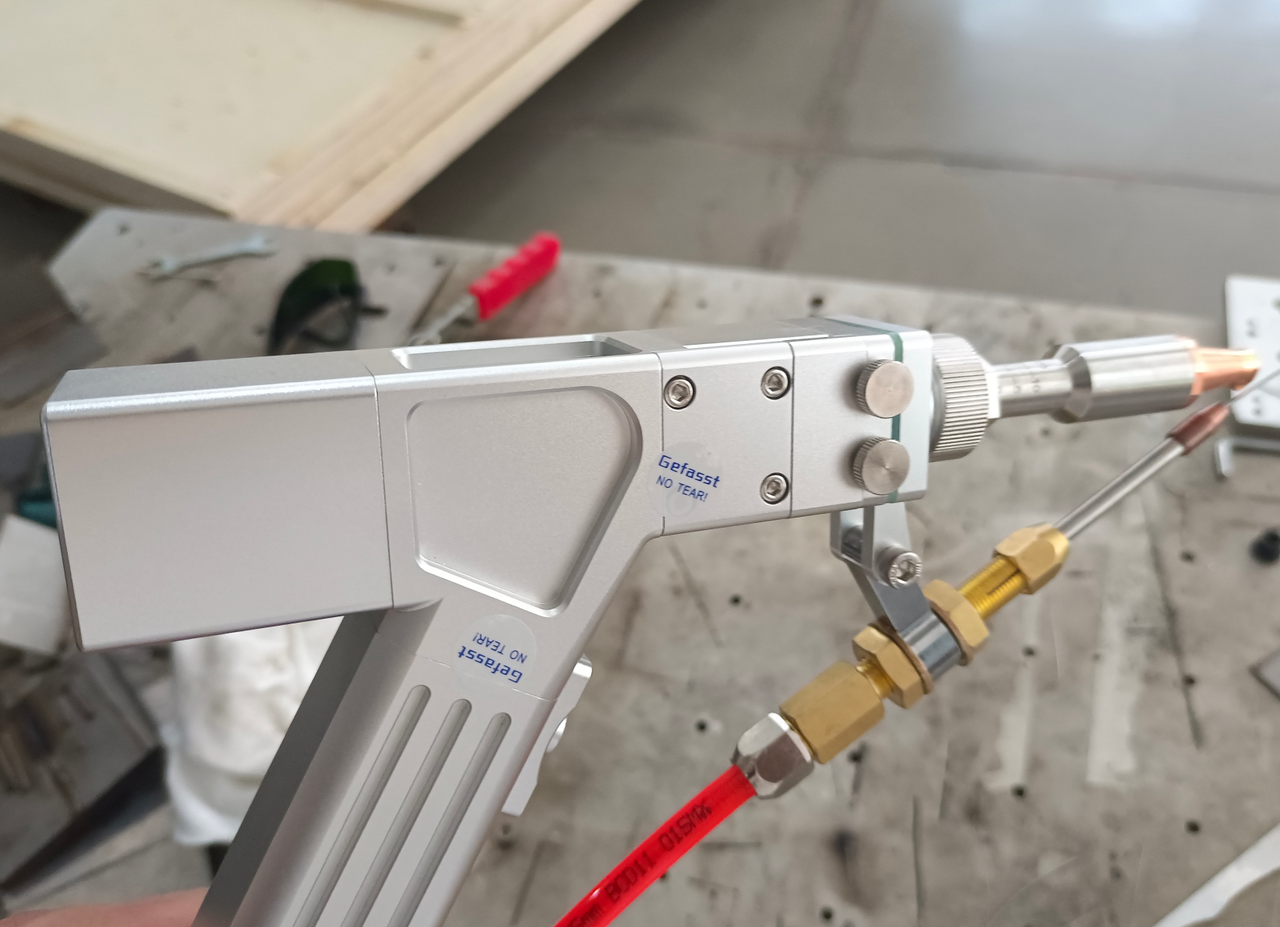

Ergonomic Handheld Welding Gun
- Flexible for outdoor welding and complex positions
- Supports multi-angle applications without the need for a fixed welding station
- Lightweight design to reduce operator fatigue

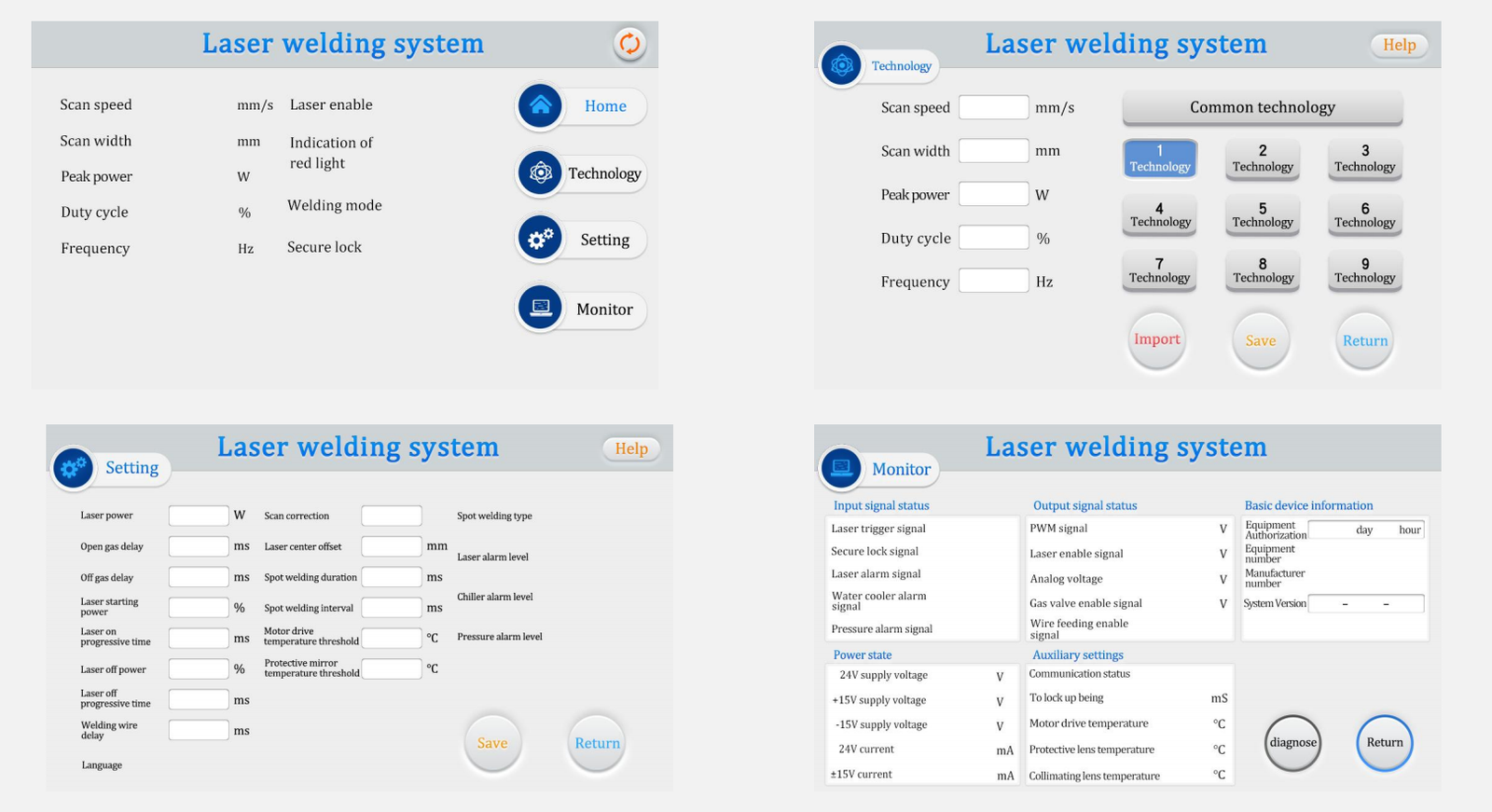

Advanced Control System
- SUP/Gefasst latest easy-to-use interface
- Pre-set parameters for quick startup
- Process storage capability for repeat jobs
- Multilingual support – 19 languages available

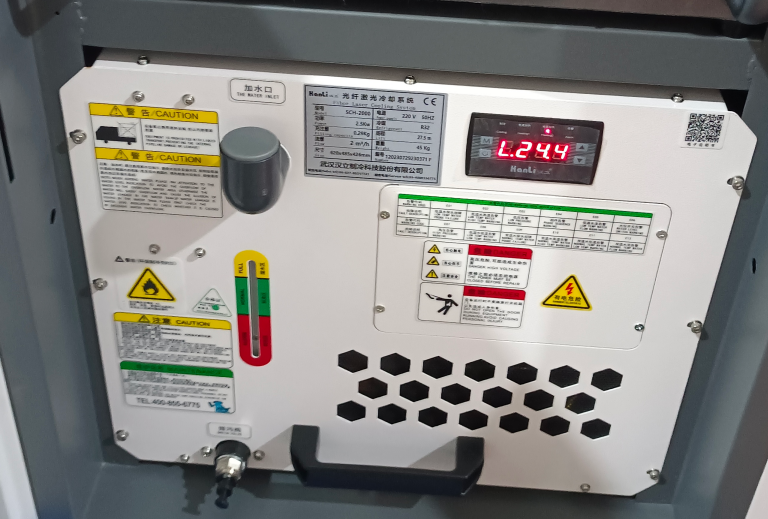

Professional Cooling System
- S&A or Hanli precision water chillers
- Temperature control accuracy up to ±0.5°C
- Dual temperature design for cooling both laser body and welding head simultaneously

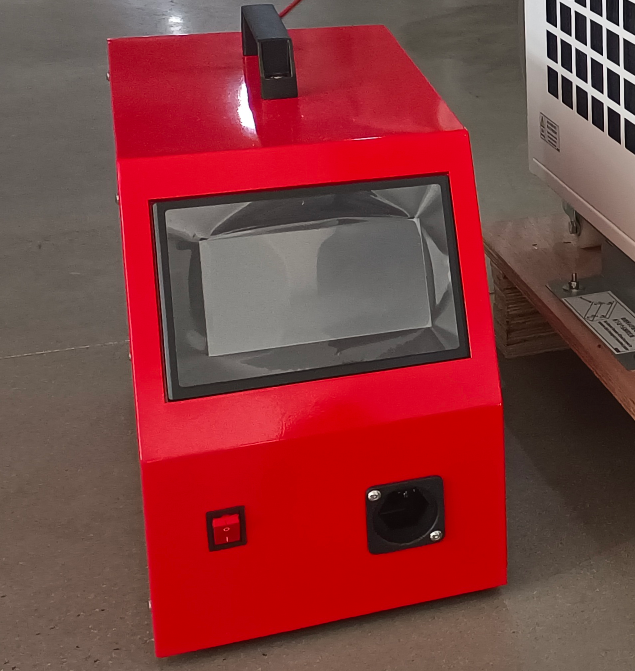

Automatic Wire Feeding
- Independent touch screen for wire control
- Supports multiple languages and settings adjustment
- Smooth and steady feeding for various wire diameters

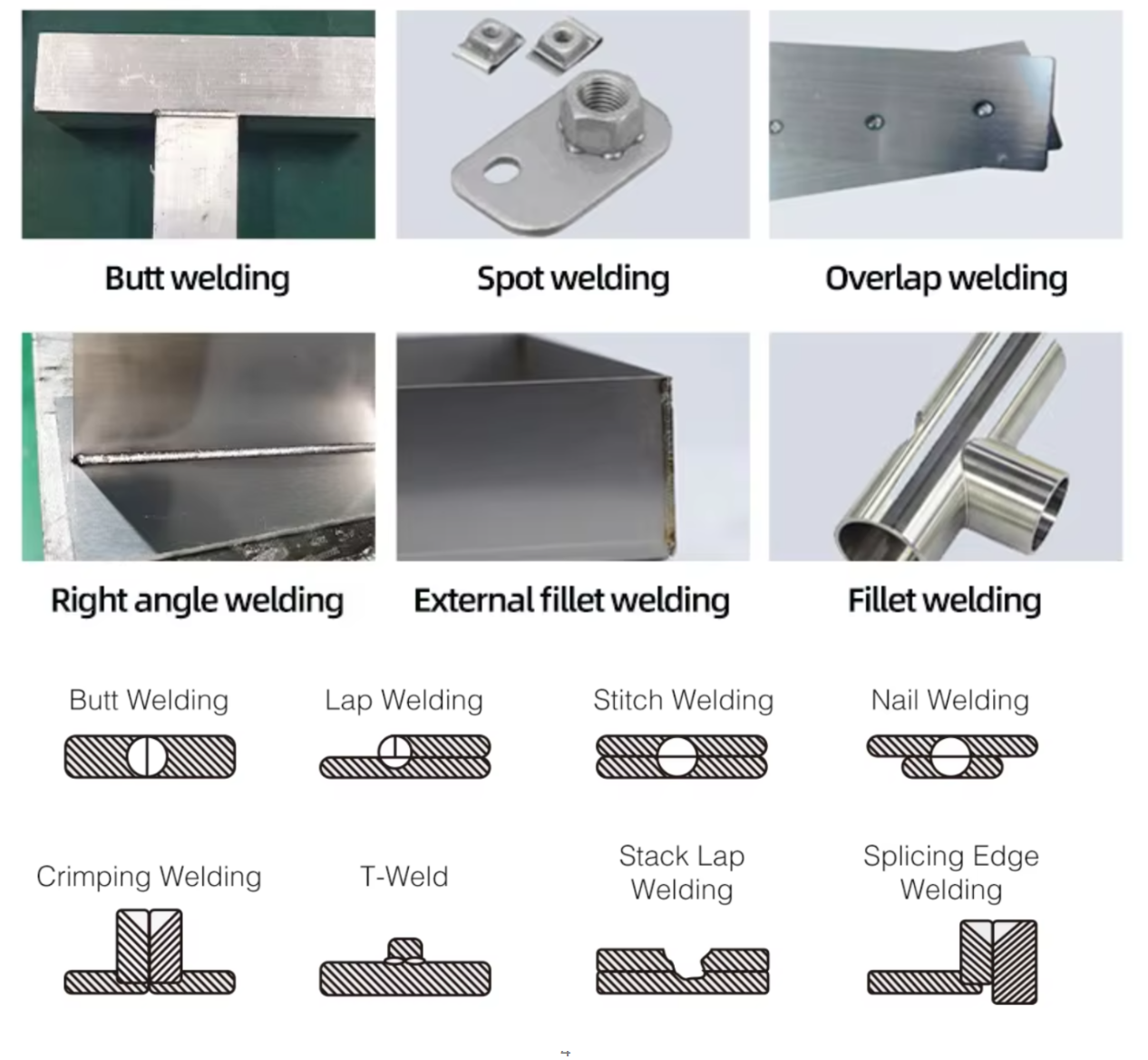

Applications Across Industries for HORISTAR Laser Welding Machine
HORISTAR Handheld Laser Welding Machines offer exceptional adaptability, making them suitable for virtually any industry where accurate metal joining is essential. Among the many sectors benefiting from this technology are:
Metal Fabrication
From custom structures to precision parts
Electronics Production
Ensuring delicate connections in complex devices
Mold Manufacturing
Delivering smooth, durable welds for high-quality molds
Hardware Tool Assembly
Enhancing strength and longevity for everyday tools
Automotive Manufacturing
Streamlining vehicle assembly and repair tasks
Jewelry Craftsmanship
Enabling fine, intricate detailing without damage
Electrical & Electronic Equipment
Securing components for reliable performance
Medical & Biomedical Devices
Supporting safety and precision in healthcare tools
Aerospace Engineering
Meeting stringent structural requirements with exacting welds
New Energy Solutions
Including welding of lithium battery packs for sustainable systems
Construction & Infrastructure
Reinforcing architectural and structural elements
General Metal Workshops
Serving diverse daily welding needs with efficiency
Sample Display
Precise engraving and clean cutting results across a wide range of non-metal materials.
Suitable for acrylic, wood, leather, fabric, paper, and plastic applications.
Demonstrates stable performance in marking details, cutting edges, and complex patterns.
Trusted Handheld Laser Welding Machine Supplier
HORISTAR Machinery is a globally trusted name in CNC intelligent manufacturing. With a diverse product range that includes laser systems, CNC equipment, bending machines, and more, HORISTAR has established a reputation for delivering high-quality, advanced manufacturing machines to clients worldwide.
Why Our Customers Choose Us
End-to-End Support
Pre-sales consultation, installation, training, and after-sales service
Consistent Innovation
Continuous upgrading of our machine designs
International Standards
Compliance with safety and quality standards
Reliable Delivery
Timely production and secure global shipment
We are not only a manufacturer — we are your handheld Laser Welding Machine supplier committed to long-term cooperation.
