Integrated Structure · High Stability · Efficient Dual-Purpose Cutting
HORISTAR designs and manufactures sheet and tube laser cutting machines engineered for precision, stability, and efficient metal processing. Combining sheet and tube cutting in one system, our machines deliver high-speed performance, excellent accuracy, and long-term reliability for professional metal fabrication and industrial production.
As a professional sheet and tube laser cutting machine manufacturer, HORISTAR integrates innovation, stability, and cutting-edge technology to create a system that delivers elite performance in both sheet and tube processing. Built on industry-leading engineering principles, this machine is tailored for precision metal fabrication, combining reliability, speed, and intuitive control.
| Model | HM3015SP | HM6015SP | HM6020SP | HM8020SP | HM2580SP | HM20120SP |
|---|---|---|---|---|---|---|
| Working area | 3000×1500mm | 6000×1500mm | 6000×2000mm | 6000×2500mm | 8000×2500mm | 12000×2000mm |
| Laser power | 3KW-60KW | |||||
| Laser source | Max/Raycus/ IPG | |||||
| Control system | FSCUT | |||||
| Diameter of rotary | 220mm/350mm | |||||
| Length of rotary | 6 meters | |||||
| Driver and Motor | BOCHU/Yaskawa/Fuji/Panasonic | |||||
| Position accuracy | ±0.03mm | |||||
| Repeat position accuracy | 0.02mm | |||||

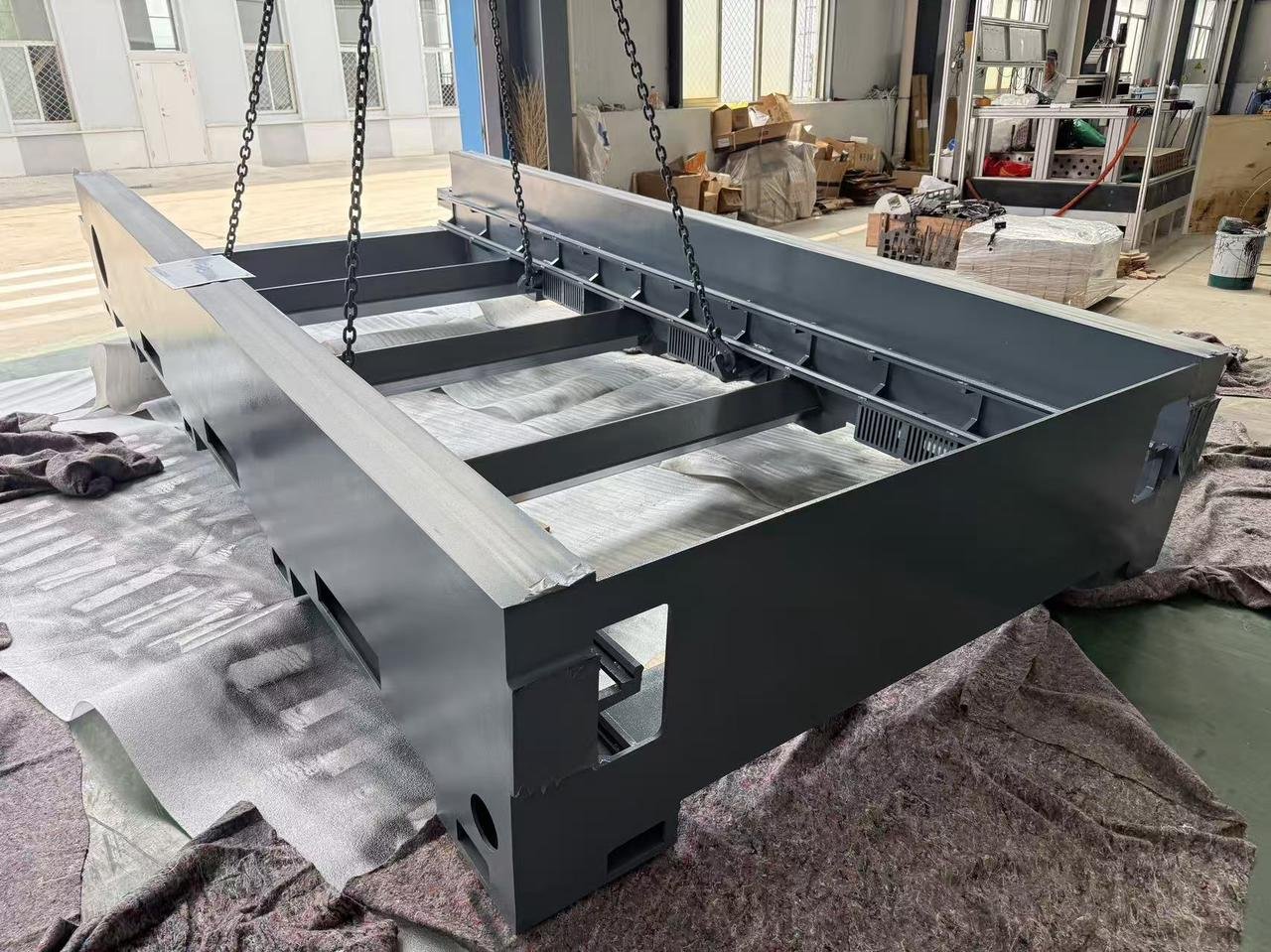

HORISTAR manufactures sheet and tube laser cutting machines that implement a full-frame steel-welding process, combining tube and plate cutting modules into one seamless structure.

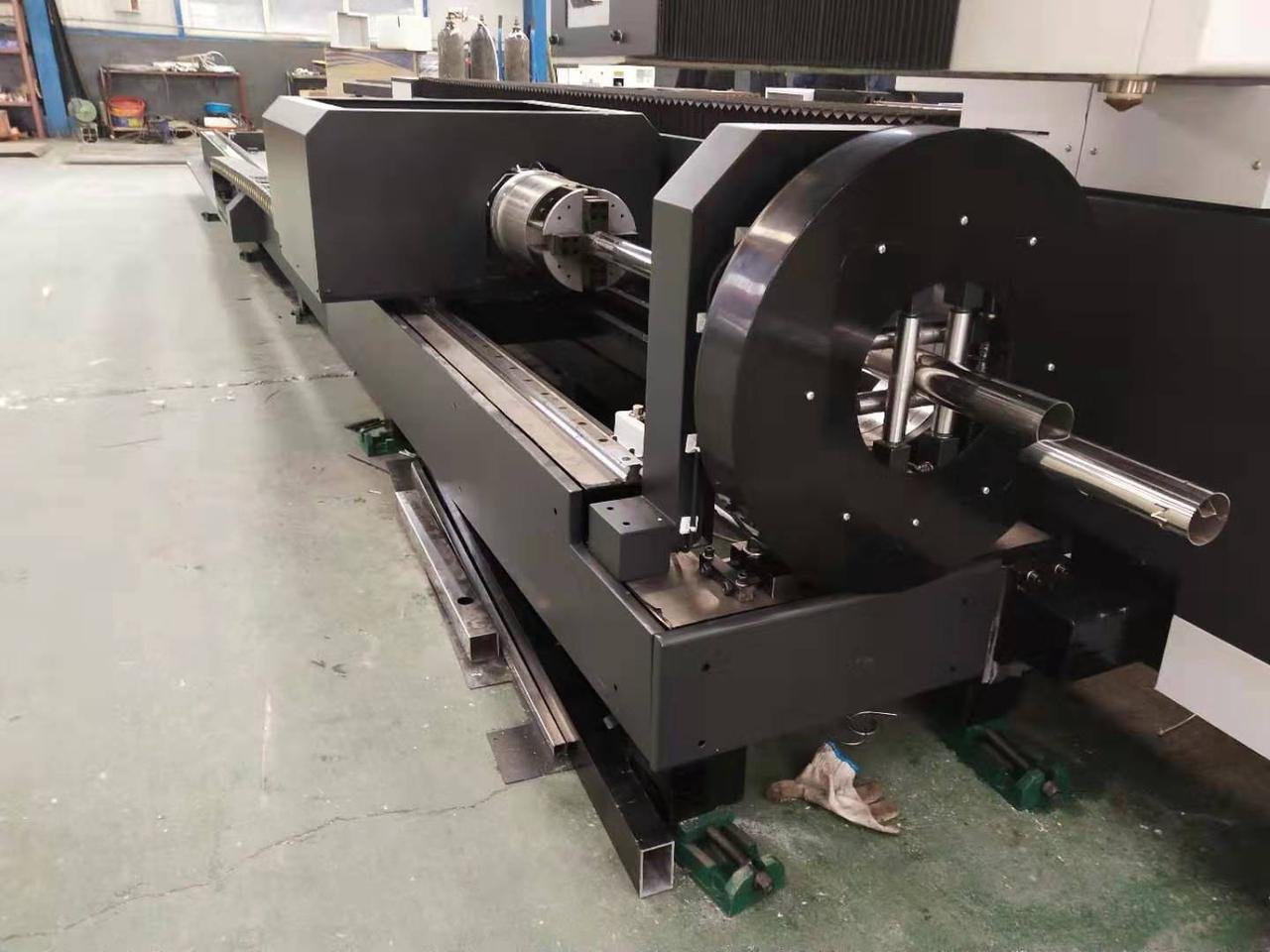

This innovative air-support mechanism in HORISTAR Sheet and Tube Laser Cutting Machine enhances accuracy and protects surface finishes.

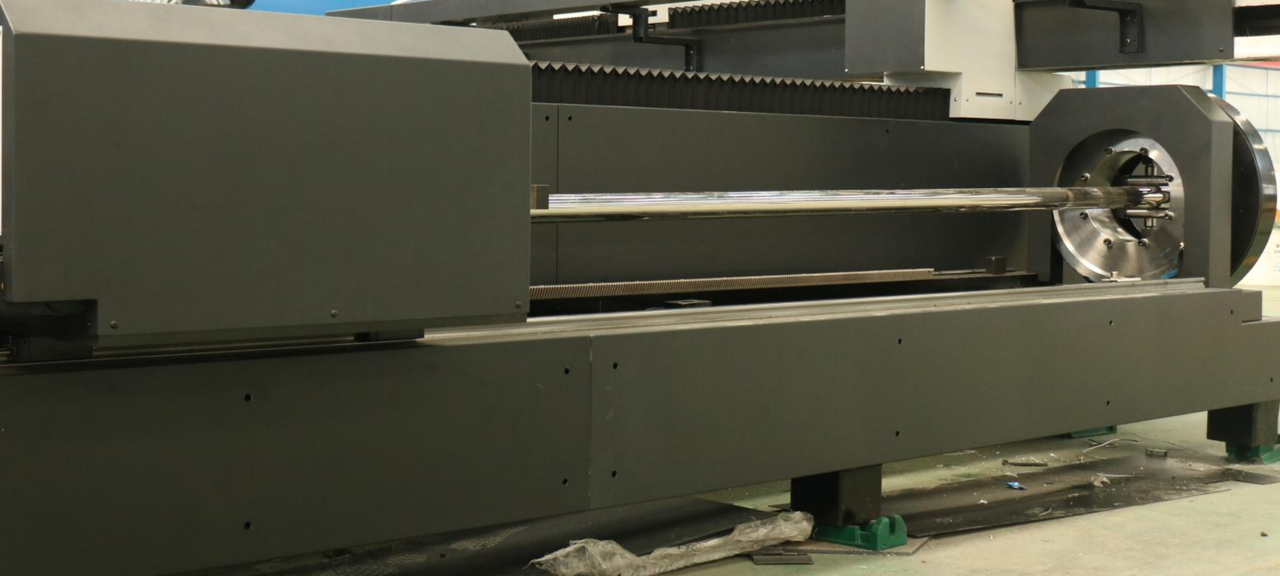

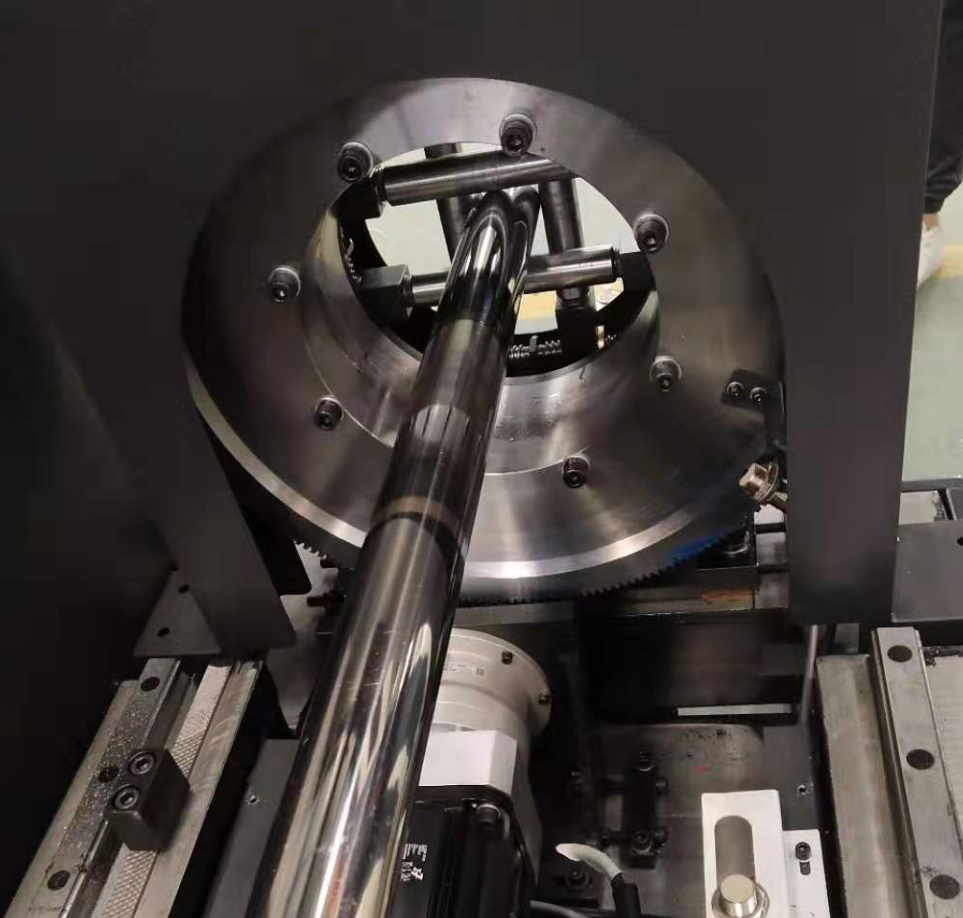

The HORISTAR sheet and tube laser cutting machine is designed with over-travel cutting capability, maximizing material usage while reducing tail-end waste.

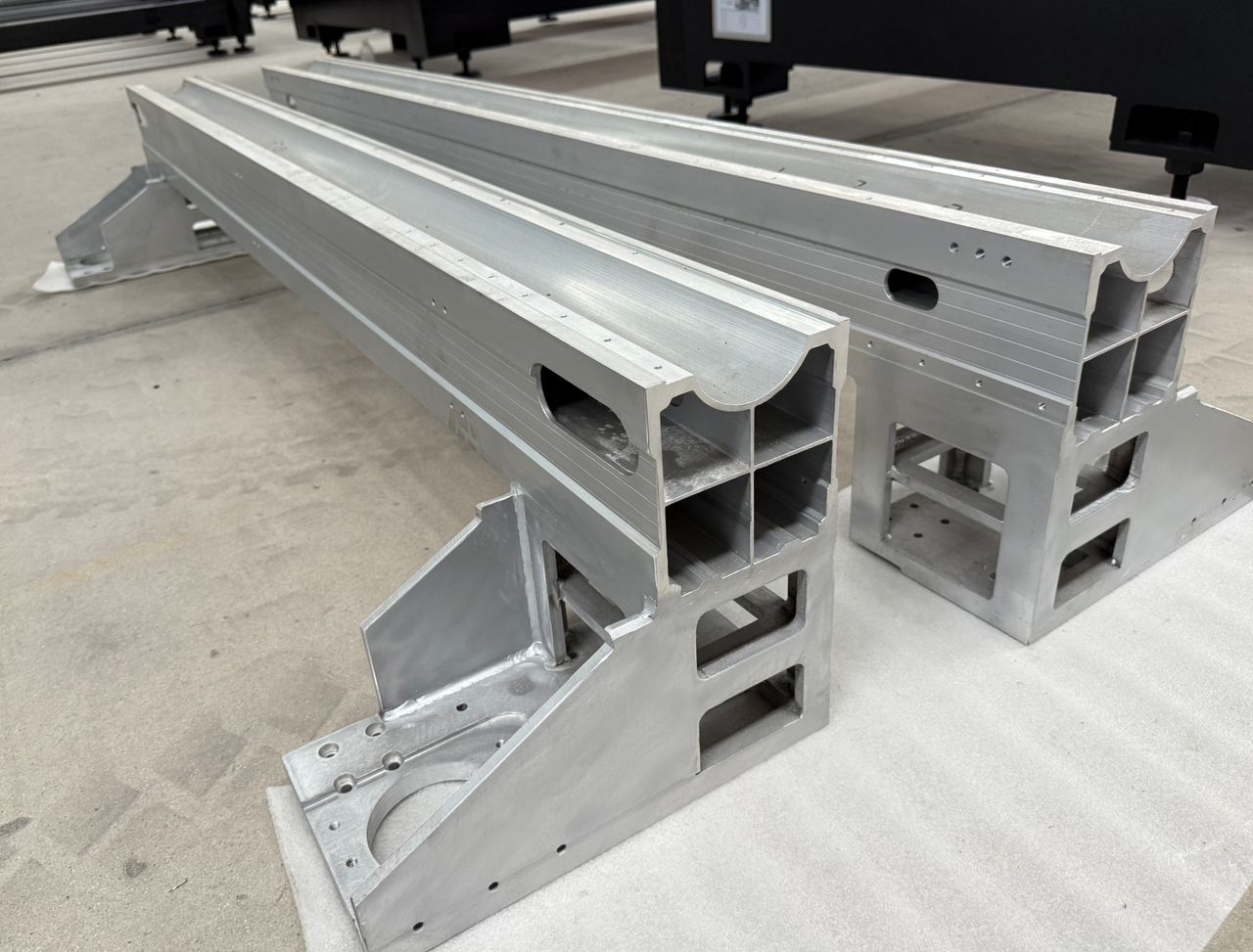

Each HORISTAR sheet and tube laser cutting machine utilizes a one-piece aerospace aluminum crossbeam for top-tier movement stability.
The Z-axis linear module in the sheet and tube laser cutting machine ensures accurate and stable vertical control of the laser head during cutting operations, maintaining an optimal focus distance for both sheet and tube processing.
High-precision cutting samples produced by HORISTAR sheet and tube laser cutting machines
Clean edges, smooth contours, and stable performance on stainless steel, carbon steel, aluminum, and other metal materials—ideal for professional metal fabrication and tube processing
From steelwork to complex custom fabrication, the HORISTAR sheet and tube laser cutting machine manufacturer delivers stable, efficient, and intelligent manufacturing solutions. The combination of robust mechanical design, precise automation, and user-friendly interface ensures maximum productivity with minimal operator effort.
The HORISTAR sheet and tube laser cutting machine combines the craftsmanship of high-quality hardware with innovative control intelligence to redefine productivity. As both a sheet and tube laser cutting machine manufacturer and supplier, HORISTAR ensures consistent quality assurance, competitive pricing, and reliable after-sales service.
Choose HORISTAR to empower your production line — where every cut reflects excellence.
