Question 1

Consistent Finishing Accuracy

Accepted Answer

Dual sanding systems guarantee equal material removal and repeatable quality.

Question 2

High Efficiency

Accepted Answer

Variable feed speed (0.5–6 m/min) supports flexible processing rates for varying workloads.

Question 3

Multi‑Material Compatibility

Accepted Answer

Suitable for stainless steel, aluminum, brass, copper, and other alloys.

Question 4

Durability

Accepted Answer

The reinforced body and industrial‑grade components extend equipment lifespan.

Question 5

Ease of Use

Accepted Answer

PLC interface simplifies operation and reduces training complexity.

Question 6

Safety Assurance

Accepted Answer

Automatic protection layers prevent overloads or misoperation.

Question 7

Energy Saving

Accepted Answer

Servo motors optimize performance while reducing energy consumption.

Question 8

Excellent ROI

Accepted Answer

Superior performance translates into reduced manual labor, faster payback, and higher profitability.

Question 9

HM-1000G-W

Working width
                        1000mm

Processing thickness
                        0.5-100mm

Number of flexible grinding rollers
                        6

Feeding speed
                        0.5-6m/min

Minimum processing size
                        50*50mm

Chamfer range
                        R0.1-0.5mm

Machine weight
                        2800KG

Voltage
                        380V 50HZ/60HZ

HM-1300G-W

Working width
                        1300mm

Processing thickness
                        0.5-100mm

Number of flexible grinding rollers
                        8

Feeding speed
                        0.5-6m/min

Minimum processing size
                        50*50mm

Chamfer range
                        R0.1-0.5mm

Machine weight
                        4500KG

Voltage
                        380V 50HZ/60HZ

Download Complete Specifications (PDF)

@import url('https://fonts.googleapis.com/css2?family=Inter:wght@400;500;600;700;800;900&display=swap');

.horistar-deburring-specifications {
        width: 100%;
        background: linear-gradient(135deg, #f8f9fa 0%, #ffffff 100%);
        padding: 80px 0;
        font-family: 'Inter', sans-serif;
    }

.horistar-deburring-specifications .specifications-container {
        max-width: 1400px;
        margin: 0 auto;
        padding: 0 30px;
    }

/* Section Header */
    .horistar-deburring-specifications .specifications-header {
        text-align: center;
        margin-bottom: 50px;
    }

.horistar-deburring-specifications .section-label {
        display: inline-block;
        font-size: 0.85rem;
        font-weight: 700;
        color: #1c2959;
        letter-spacing: 2px;
        text-transform: uppercase;
        padding-bottom: 0.5rem;
        border-bottom: 2px solid #1c2959;
        margin-bottom: 1rem;
    }

.horistar-deburring-specifications .section-title {
        font-size: 2.5rem;
        font-weight: 800;
        color: #1e293b;
        line-height: 1.2;
        margin: 1rem 0 0 0;
        letter-spacing: -0.01em;
    }

.horistar-deburring-specifications .title-highlight {
        color: #1c2959;
    }

/* Desktop Table */
    .horistar-deburring-specifications .desktop-table {
        max-width: 1100px;
        margin: 0 auto 40px auto;
        background: #ffffff;
        border-radius: 12px;
        box-shadow: 0 10px 40px rgba(28, 41, 89, 0.08);
        overflow: hidden;
    }

.horistar-deburring-specifications .specifications-table {
        width: 100%;
        border-collapse: collapse;
    }

/* Table Header */
    .horistar-deburring-specifications .specifications-table thead {
        background: linear-gradient(135deg, #1c2959, #2a3f7a);
    }

.horistar-deburring-specifications .specifications-table th {
        padding: 20px 30px;
        text-align: center;
        font-size: 1rem;
        font-weight: 700;
        color: #ffffff;
        text-transform: uppercase;
        letter-spacing: 0.5px;
    }

.horistar-deburring-specifications .parameter-header {
        background: rgba(0, 0, 0, 0.1);
    }

.horistar-deburring-specifications .model-1 {
        background: rgba(255, 255, 255, 0.05);
    }

.horistar-deburring-specifications .model-2 {
        background: rgba(255, 255, 255, 0.1);
    }

/* Table Body */
    .horistar-deburring-specifications .specifications-table tbody tr {
        border-bottom: 1px solid rgba(28, 41, 89, 0.08);
        transition: background 0.2s ease;
    }

.horistar-deburring-specifications .specifications-table tbody tr:last-child {
        border-bottom: none;
    }

.horistar-deburring-specifications .specifications-table tbody tr:hover {
        background: rgba(28, 41, 89, 0.02);
    }

.horistar-deburring-specifications .specifications-table td {
        padding: 18px 30px;
        font-size: 0.95rem;
        line-height: 1.5;
    }

.horistar-deburring-specifications .parameter-cell {
        text-align: center;
        font-weight: 600;
        color: #1e293b;
        background: rgba(28, 41, 89, 0.02);
    }

.horistar-deburring-specifications .value-cell {
        text-align: center;
        font-weight: 500;
        color: #475569;
    }

/* Mobile Cards - Hidden on Desktop */
    .horistar-deburring-specifications .mobile-cards {
        display: none;
    }

/* Download CTA */
    .horistar-deburring-specifications .specifications-cta {
        display: flex;
        justify-content: center;
        margin-top: 40px;
    }

.horistar-deburring-specifications .btn-download-specs {
        display: inline-flex;
        align-items: center;
        gap: 12px;
        padding: 16px 32px;
        background: linear-gradient(135deg, #1c2959, #2a3f7a);
        color: #ffffff;
        font-size: 1rem;
        font-weight: 600;
        text-decoration: none;
        border-radius: 8px;
        box-shadow: 0 4px 15px rgba(28, 41, 89, 0.28);
        transition: all 0.3s ease;
    }

.horistar-deburring-specifications .btn-download-specs:hover {
        transform: translateY(-3px);
        box-shadow: 0 8px 25px rgba(28, 41, 89, 0.38);
        background: linear-gradient(135deg, #162248, #233666);
    }

.horistar-deburring-specifications .btn-download-specs svg {
        flex-shrink: 0;
    }

/* Responsive Design */
    @media (max-width: 1200px) {
        .horistar-deburring-specifications .specifications-container {
            padding: 0 20px;
        }

.horistar-deburring-specifications .section-title {
            font-size: 2.2rem;
        }
    }

@media (max-width: 992px) {
        .horistar-deburring-specifications {
            padding: 60px 0;
        }

.horistar-deburring-specifications .specifications-header {
            margin-bottom: 40px;
        }

.horistar-deburring-specifications .section-title {
            font-size: 2rem;
        }

.horistar-deburring-specifications .specifications-table th,
        .horistar-deburring-specifications .specifications-table td {
            padding: 16px 20px;
            font-size: 0.9rem;
        }
    }

@media (max-width: 768px) {
        .horistar-deburring-specifications {
            padding: 50px 0;
        }

.horistar-deburring-specifications .specifications-container {
            padding: 0 20px;
        }

.horistar-deburring-specifications .specifications-header {
            margin-bottom: 35px;
        }

.horistar-deburring-specifications .section-label {
            font-size: 0.75rem;
        }

.horistar-deburring-specifications .section-title {
            font-size: 1.8rem;
        }

/* Hide Desktop Table */
        .horistar-deburring-specifications .desktop-table {
            display: none;
        }

/* Show Mobile Cards */
        .horistar-deburring-specifications .mobile-cards {
            display: flex;
            flex-direction: column;
            gap: 25px;
            margin-bottom: 30px;
        }

/* Model Card */
        .horistar-deburring-specifications .model-card {
            background: #ffffff;
            border-radius: 12px;
            box-shadow: 0 4px 20px rgba(28, 41, 89, 0.08);
            overflow: hidden;
        }

.horistar-deburring-specifications .card-header {
            background: linear-gradient(135deg, #1c2959, #2a3f7a);
            padding: 20px;
            text-align: center;
        }

.horistar-deburring-specifications .model-name {
            font-size: 1.3rem;
            font-weight: 700;
            color: #ffffff;
            margin: 0;
            letter-spacing: 0.5px;
        }

.horistar-deburring-specifications .card-body {
            padding: 0;
        }

.horistar-deburring-specifications .spec-row {
            display: flex;
            justify-content: space-between;
            align-items: center;
            padding: 14px 20px;
            border-bottom: 1px solid rgba(28, 41, 89, 0.08);
        }

.horistar-deburring-specifications .spec-row:last-child {
            border-bottom: none;
        }

.horistar-deburring-specifications .spec-label {
            font-size: 0.85rem;
            font-weight: 600;
            color: #64748b;
            flex: 1;
            padding-right: 15px;
        }

.horistar-deburring-specifications .spec-value {
            font-size: 0.95rem;
            font-weight: 700;
            color: #1c2959;
            text-align: right;
            white-space: nowrap;
        }

.horistar-deburring-specifications .specifications-cta {
            margin-top: 30px;
        }

.horistar-deburring-specifications .btn-download-specs {
            width: 100%;
            justify-content: center;
            padding: 14px 24px;
            font-size: 0.95rem;
        }
    }

@media (max-width: 480px) {
        .horistar-deburring-specifications {
            padding: 40px 0;
        }

.horistar-deburring-specifications .specifications-container {
            padding: 0 15px;
        }

.horistar-deburring-specifications .specifications-header {
            margin-bottom: 30px;
        }

.horistar-deburring-specifications .section-label {
            font-size: 0.7rem;
            letter-spacing: 1.5px;
        }

.horistar-deburring-specifications .section-title {
            font-size: 1.5rem;
        }

.horistar-deburring-specifications .mobile-cards {
            gap: 20px;
        }

.horistar-deburring-specifications .card-header {
            padding: 16px;
        }

.horistar-deburring-specifications .model-name {
            font-size: 1.2rem;
        }

.horistar-deburring-specifications .spec-row {
            padding: 12px 16px;
        }

.horistar-deburring-specifications .spec-label {
            font-size: 0.8rem;
        }

.horistar-deburring-specifications .spec-value {
            font-size: 0.9rem;
        }

.horistar-deburring-specifications .btn-download-specs {
            padding: 12px 20px;
            font-size: 0.9rem;
            gap: 10px;
        }
    }

KEY DETAILS

                Key Details of HORISTAR CNC Deburring Machine

HORISTAR has engineered each detail of its CNC Deburring Machine for operational stability, accuracy, and user convenience. Below are its core advantages:

01

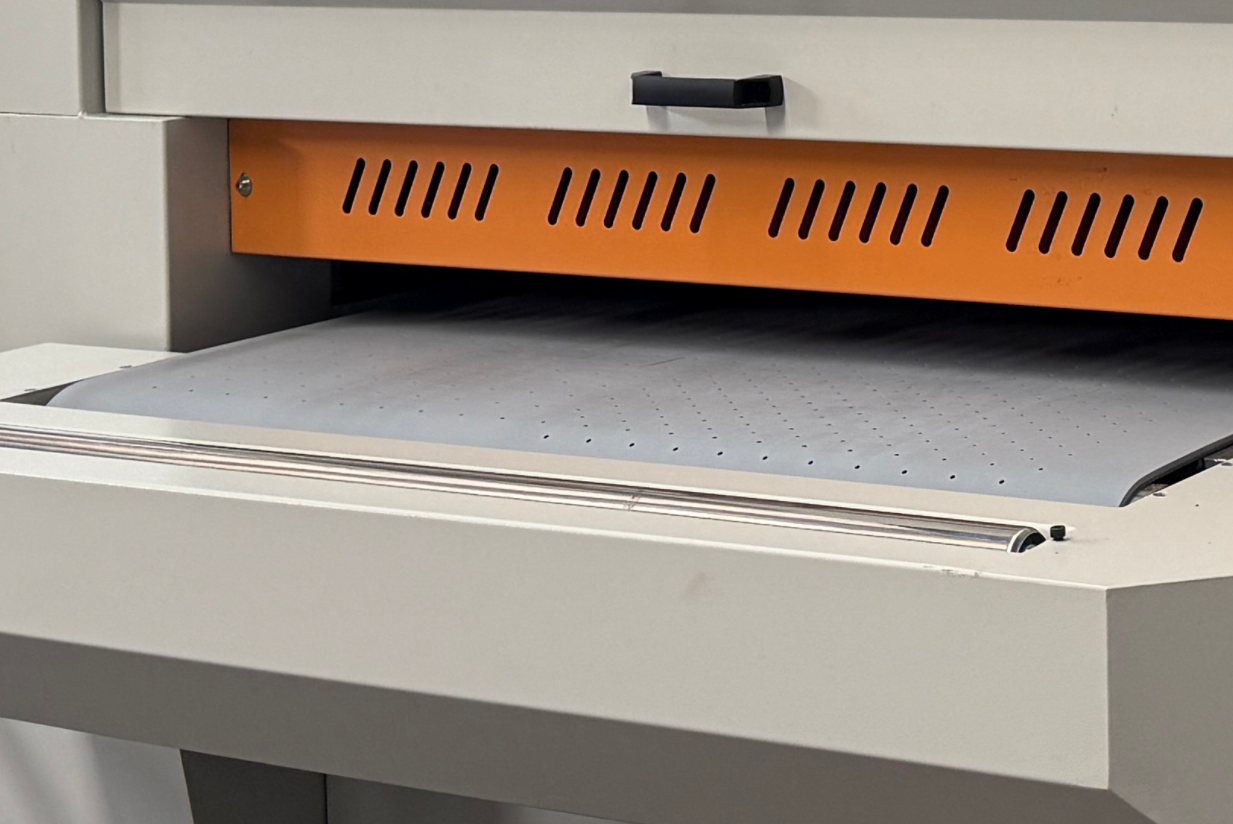

                    Vacuum Adsorption Workbench for Stable Performance

Accepted Answer

The workbench uses a vacuum adsorption system to firmly hold small or thin workpieces during processing. This ensures precise and vibration‑free finishing even for delicate parts, maintaining dimensional accuracy and surface uniformity.

Question 10

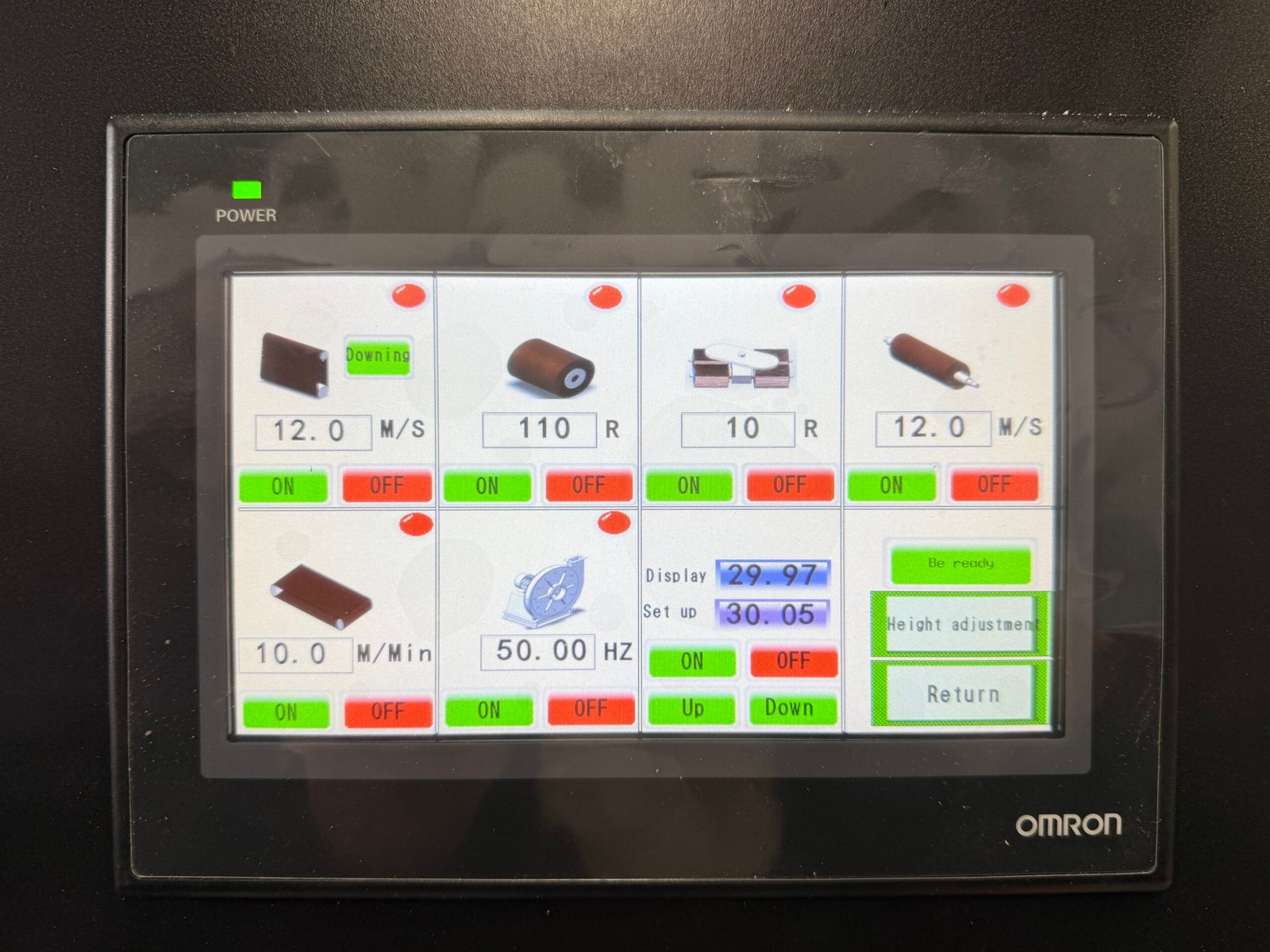

PLC Touch‑Screen CNC Control System

Accepted Answer

A built‑in PLC touch‑screen control panel provides a digital interface for operation. Parameters such as belt speed, pressure, and processing thickness can be adjusted intuitively. The interface enhances real‑time monitoring and simplifies user training, enabling quick transitions between production jobs.

Question 11

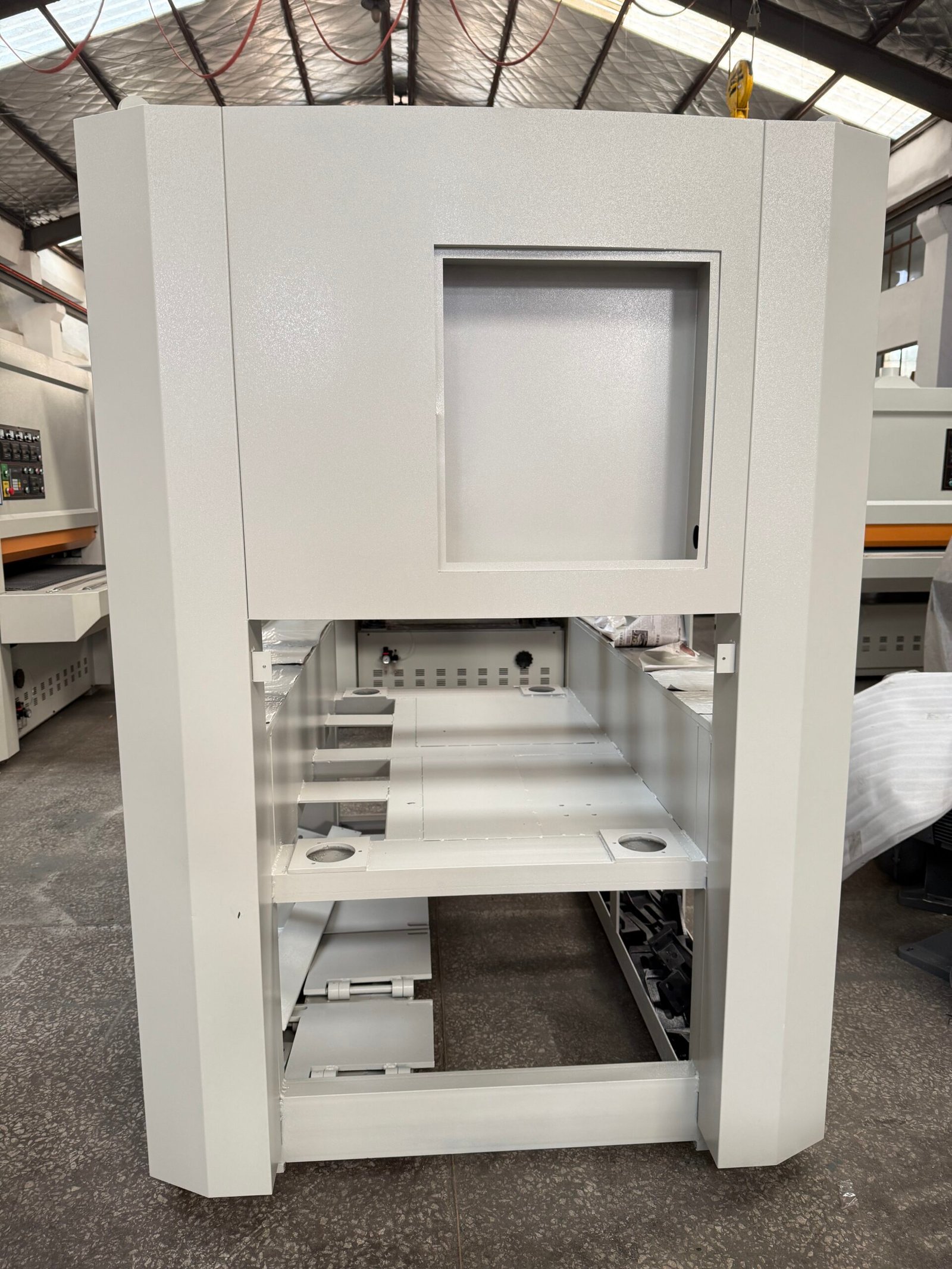

Reinforced Machine Structure for Long‑Term Stability

Accepted Answer

The machine body is thickened and precision‑milled to prevent deformation during heavy‑duty operation. This solid body design ensures durability, low vibration, and minimal maintenance through years of continuous use.

Question 12

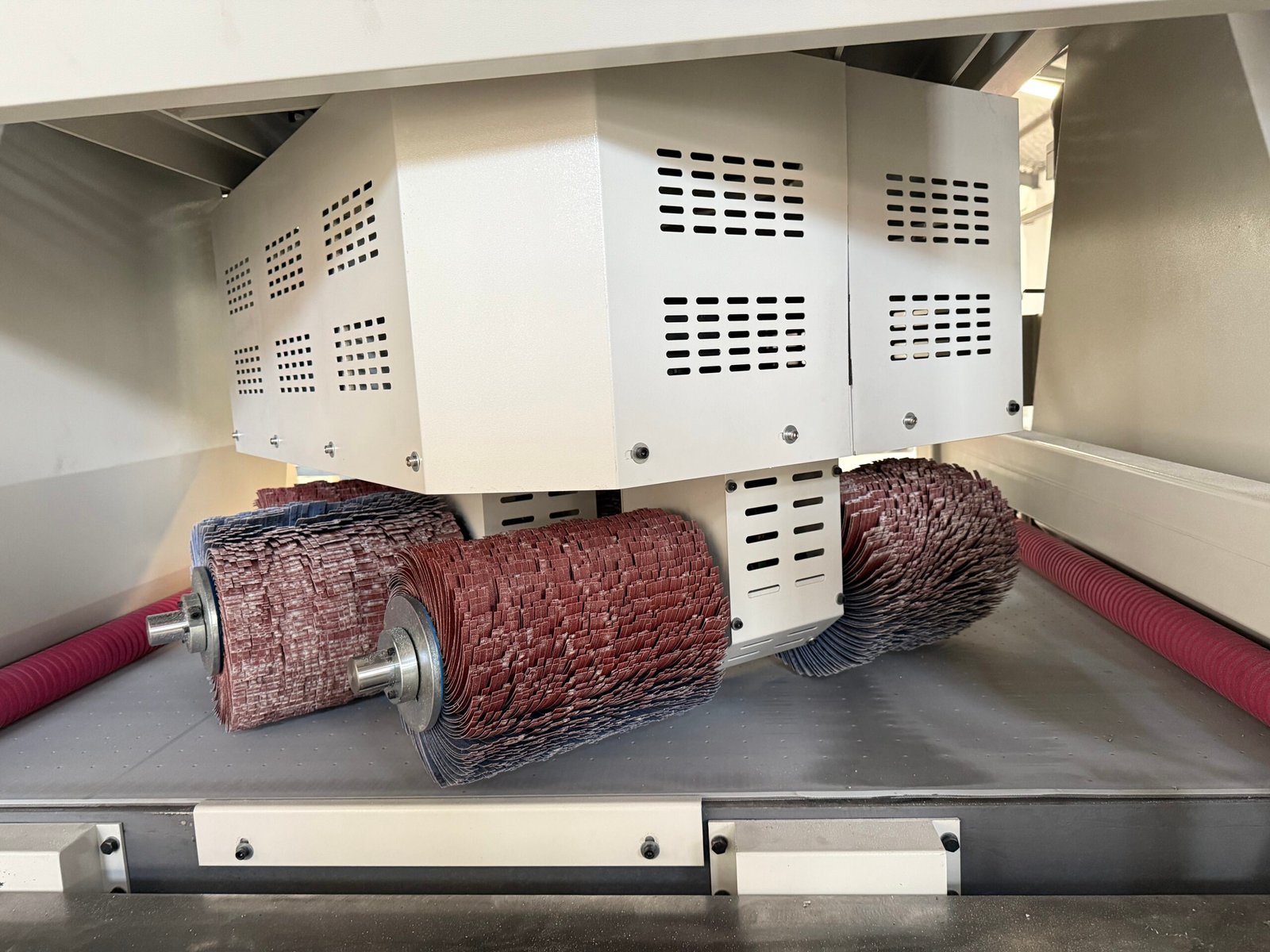

Automatic Sanding Belt Deviation Correction System

Accepted Answer

The rubber drive roller uses an eccentric shaft design to automatically correct belt alignment. This design prolongs sanding‑belt life, maintains process quality, and saves time by eliminating manual adjustments.

Question 13

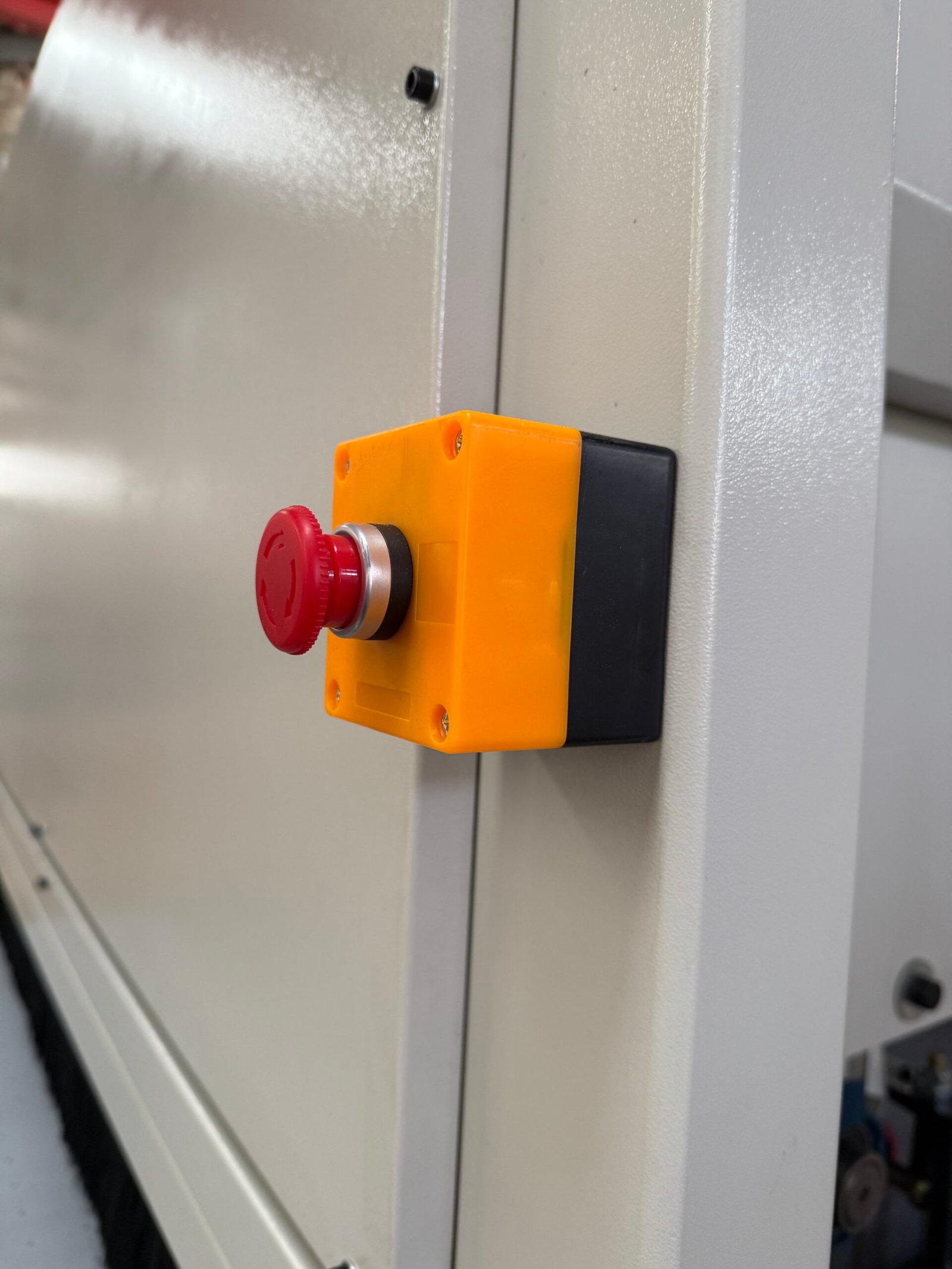

Intelligent Safety and Protection Mechanisms

Accepted Answer

The CNC Deburring Machine integrates multiple safety protocols. In case of an alarm or power failure, the sanding belt halts automatically. Limit switches protect all motion positions, providing a secure work environment and extending component lifespan.

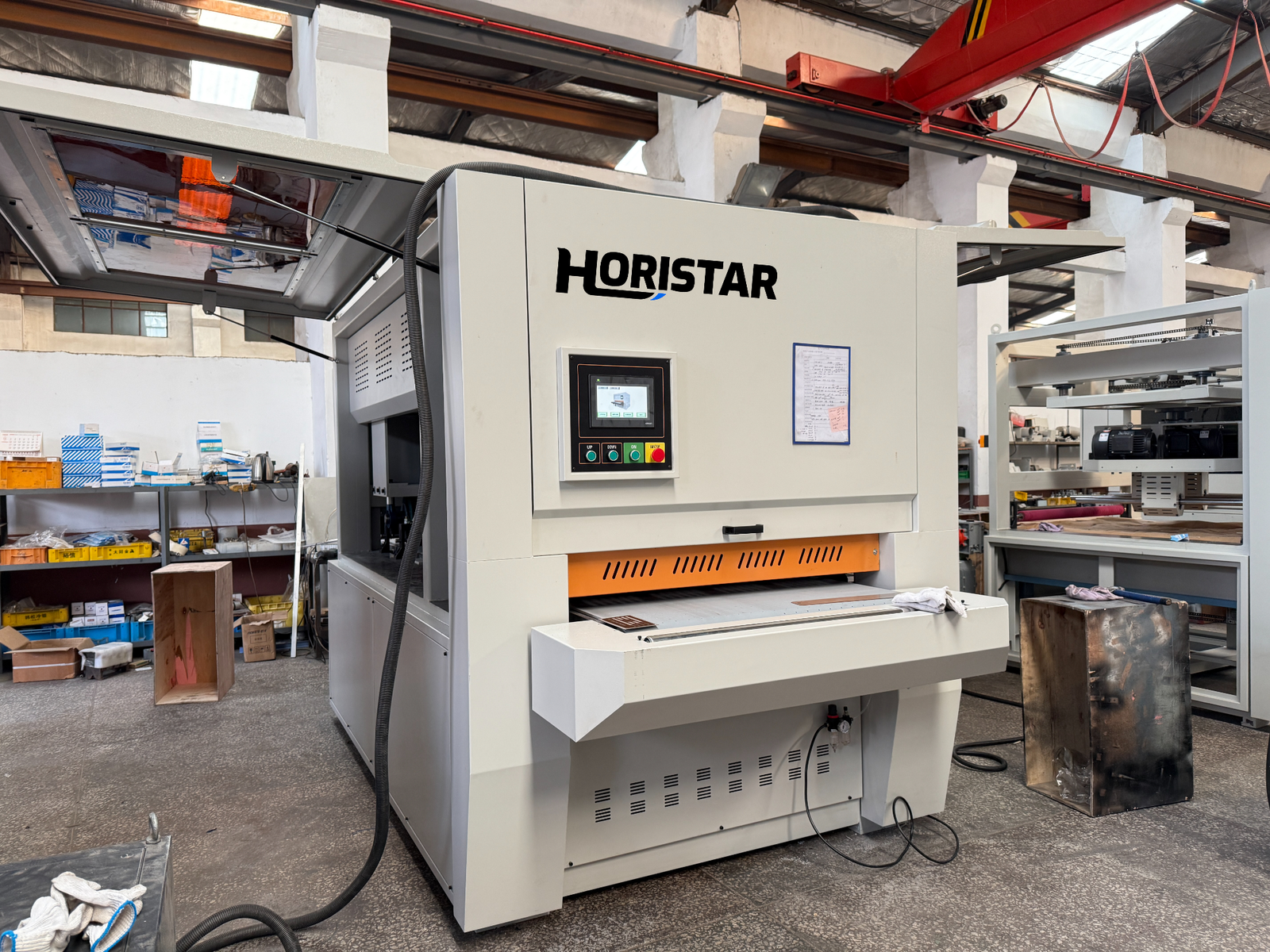

HORISTAR CNC Sanding & Deburring Machine Advanced Metal Surface Finishing Solution

Defining the Future of CNC Deburring Machine Technology

Outstanding Benefits of Using HORISTAR CNC Deburring Machine
