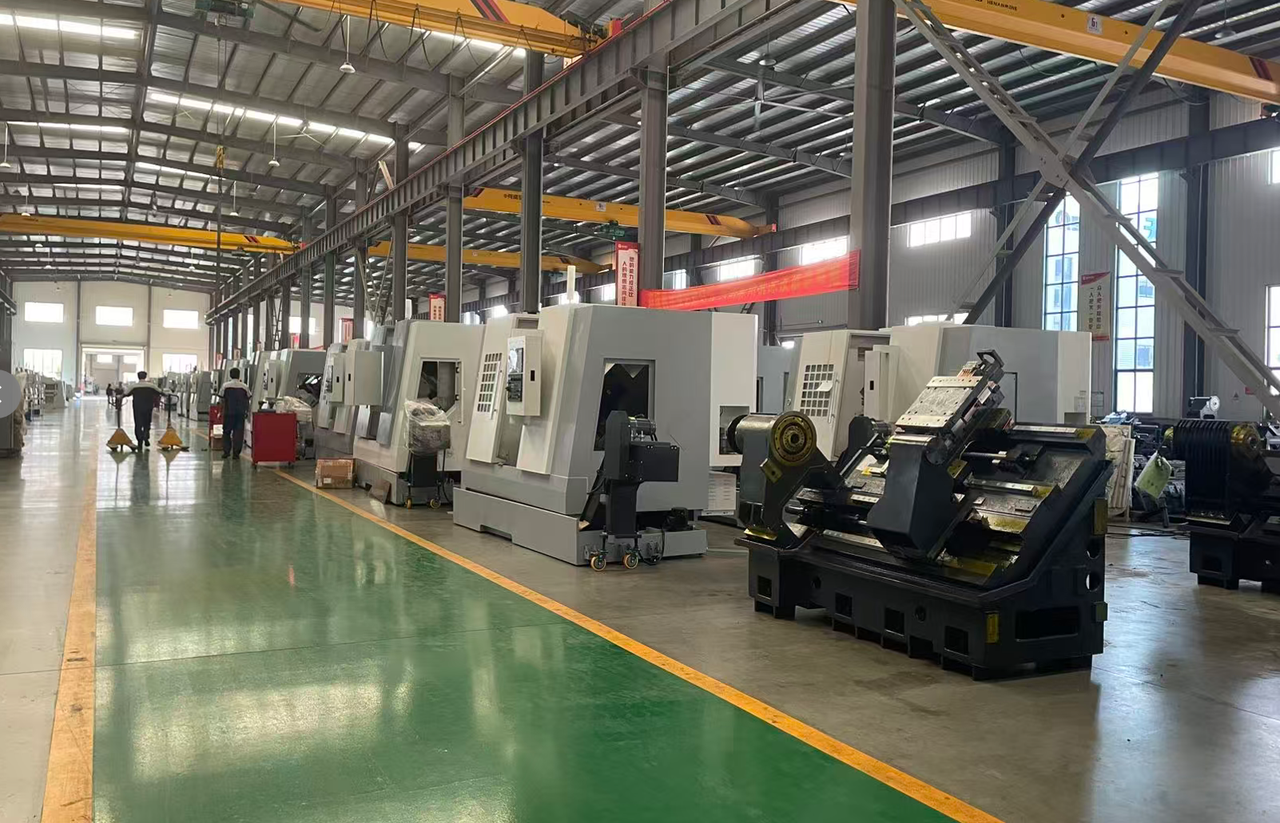

HORISTAR CNC Lathe Machine
Precision, Stability, and Performance for Modern Manufacturing
Engineered with a rigid 45° slant bed, high-precision servo drive systems, and intelligent electric spindle technology, HORISTAR CNC lathe machines deliver consistent accuracy, smooth cutting performance, and long-term reliability for turning, milling, and complex machining tasks.
Main Technical Parameters of
HORISTAR CNC Lathe Machine
| SPECIFICATIONS | Units | TCK56Y | TCK63Y | TCK80Y | Remark |
|---|---|---|---|---|---|
| Swing over bed | mm | 560 | 630 | 800 | — |
| Max. workpiece length | mm | 500-1000mm | 1000-3000mm | 1000-3000 | — |
| Max. cutting diameter | mm | 300 | 500 | 600 | — |
| Spindle bore | mm | 65 | 80 | 80 | — |
| Spindle nose type | / | A2-6 | A2-11 | A2-11 | A2-8 for optional |
| Spindle speed steps | / | Stepless | Stepless | Stepless | — |
| Spindle speed range | rpm | 50-4500 | 3000 | 3000 | — |
| Chuck | Inch | 8'' Hollow hydraulic chuck | 10'' Hollow hydraulic chuck | 12'' Hollow hydraulic chuck | — |
| Turret | / | Hydraulic turret 8 position | Hydraulic turret 8 position | Hydraulic turret 8 position | — |
| Main motor power | kw | 15 | 18.5 | 18.5/37 | — |
| Turret type | / | 12 Station power turret | 12 Station power turret | 12 Station power turret | — |
| Tail stock quill taper | / | MT4/T5 | MT5 | MT6 | — |
| Tail stock base travel | mm | 400/900 | 900/1400/1900/2900 | 900/1400/1900/2900 | — |
Need Complete Technical Documentation?
Download the full specification sheet with detailed parameters, dimensions, and performance data.

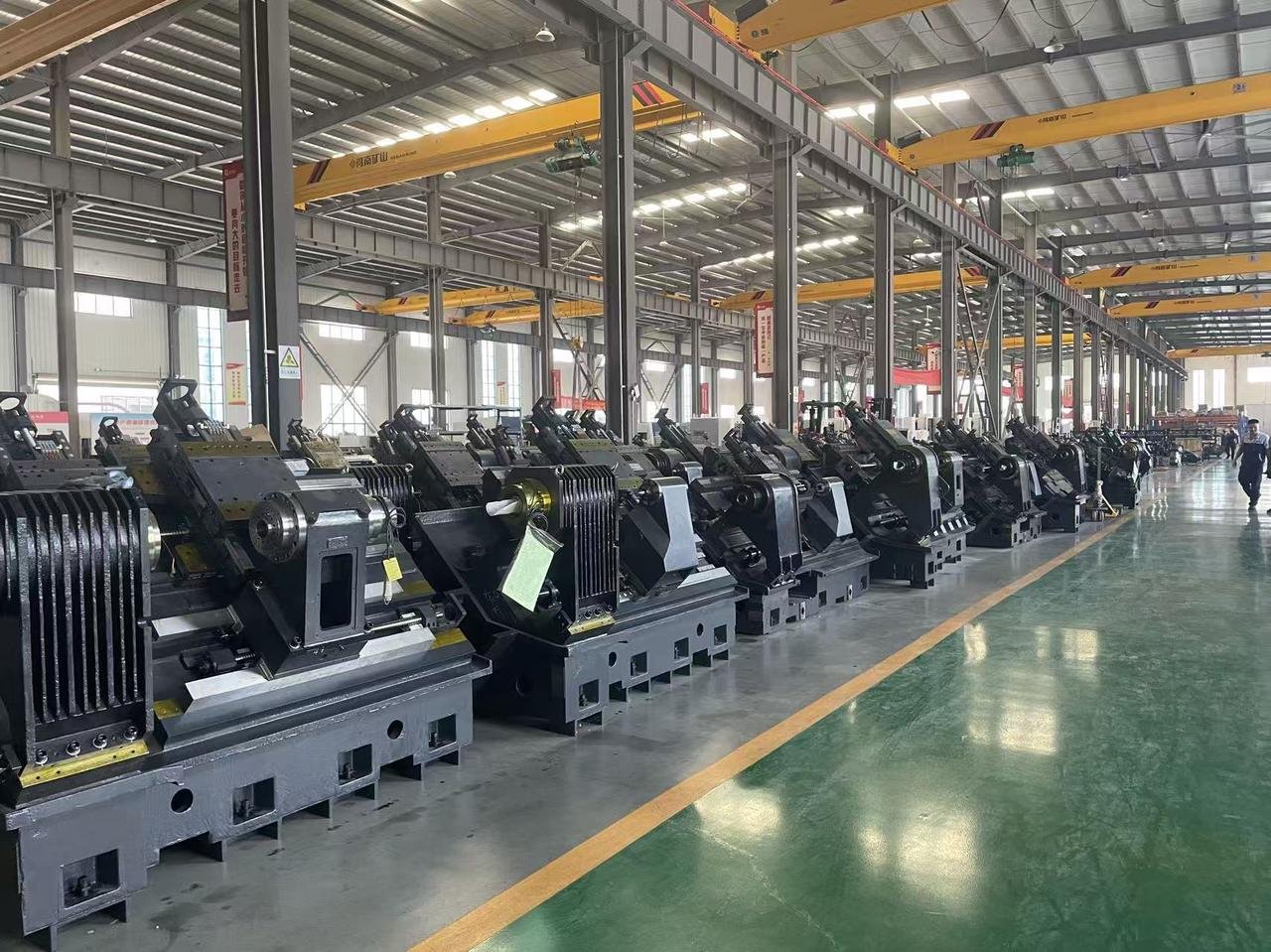

Advanced Structure of the HORISTAR CNC Lathe Machine
45° integral slanted bed, integrally cast from high-density industrial-grade cast iron, with rib layout optimized through ANSYS finite element analysis, delivering outstanding vibration resistance, rigidity, and strength, maintaining long-term accuracy even under heavy cutting conditions.
The 45° slanted bed design facilitates chip removal; during high-speed cutting, chips fall smoothly into the collection system, reducing thermal interference and manual cleaning.
Standard configuration with 45-standard precision ball linear guideways, providing smooth motion, minimal friction, and micron-level accuracy.
Key Features:
- 45° integral slanted bed for rigidity and stability
- High‑density cast‑iron body with ANSYS‑optimized rib structure
- Effective chip removal and reduced thermal distortion
- Precision linear ball guideways for smooth, accurate travel
High‑Precision Movement System in HORISTAR CNC Lathe Machine

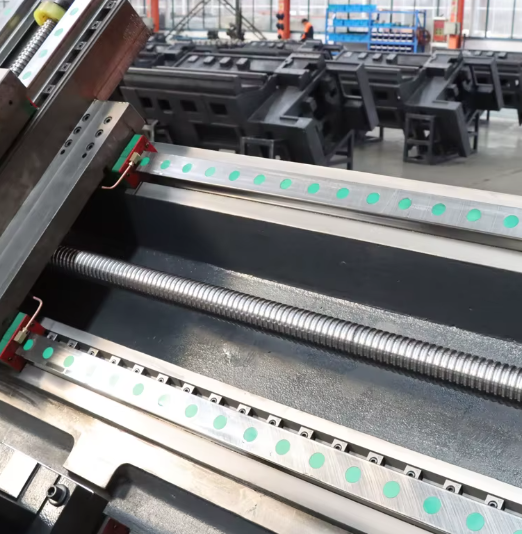

X/Z axes adopt servo direct drive + elastic coupling + double-end fixed pre-stretched ball screws, completely eliminating backlash.
Four-direction equal-load roller guideways + ball-cage design result in extremely low friction heat and minimal thermal deformation, maintaining high precision even during rapid traverse.
Key Features:
- Servo‑driven X/Z axes with elastic coupling for stable transmission
- Dual‑end supported ball screws for minimal backlash
- Four‑way equal‑load guides for rigidity and durability
- Ball‑cage design reduces friction and thermal distortion
- High responsiveness and energy efficiency for precision machining
Intelligent Electric Spindle — Core of the HORISTAR CNC Lathe Machine

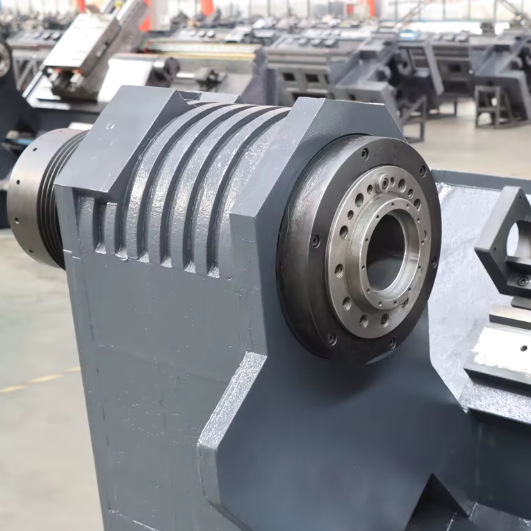

Built-in motor direct-drive technology delivers compact structure, low inertia, low noise, and minimal vibration, enabling rapid acceleration/deceleration and precise angular positioning. No intermediate transmission links mean low energy loss, excellent balance, and long service life.
Chuck System in HORISTAR CNC Lathe Machine

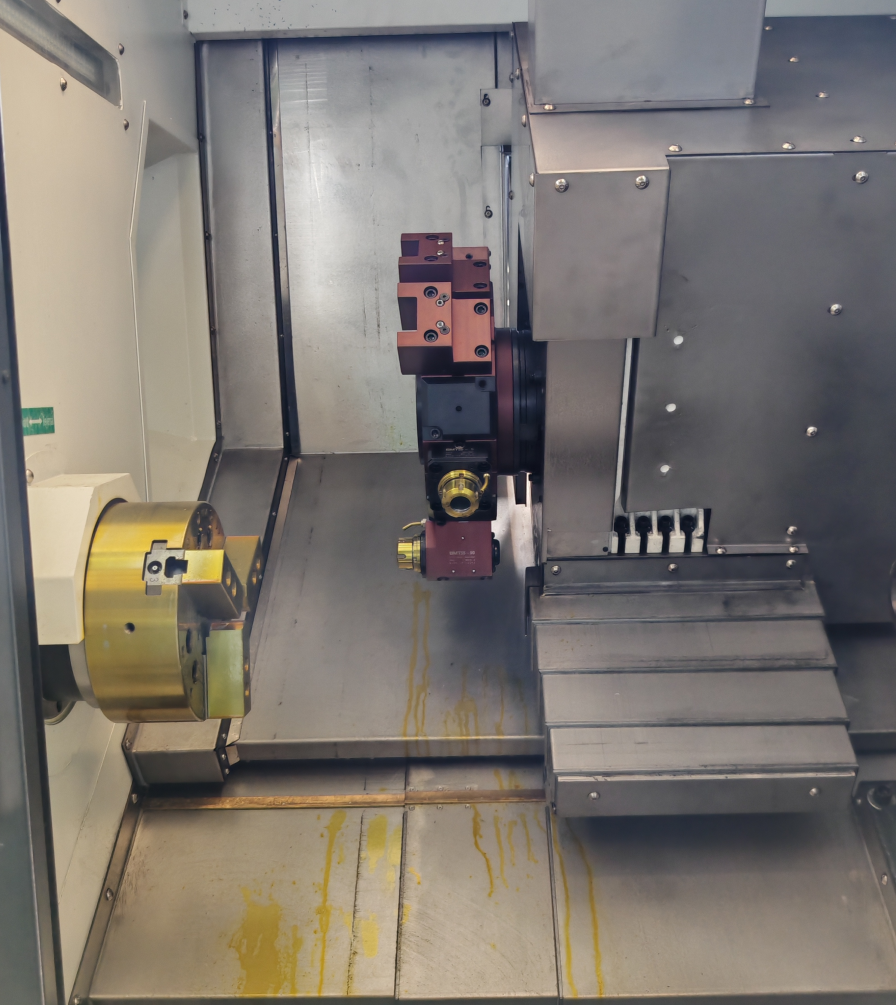

Standard Taiwan-made 8-inch hollow hydraulic chuck (6-inch optional), fast fixture change, secure clamping at high speeds, no deformation under heavy cutting.
Custom hydraulic chucks and cylinders in different specifications available according to customer requirements.
Saddle, Slide Plate, and Tool Holder in HORISTAR CNC Lathe Machine
Saddle made of integral high-density cast iron, X/Y axes equipped with precision ball linear guideways + imported high-precision ball screws + servo direct drive.
Hard-rail Y-axis significantly enhances milling rigidity.

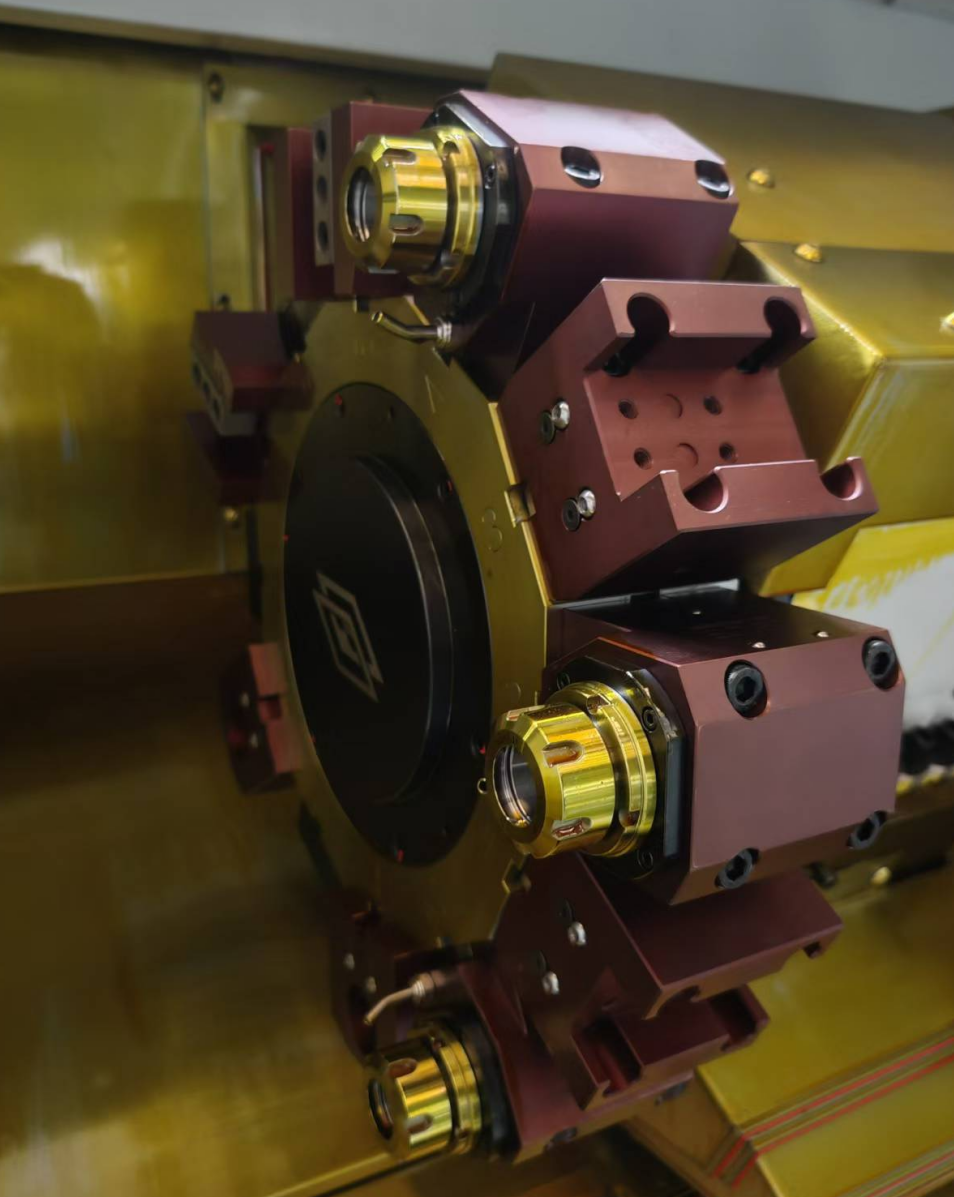

12-station servo turret with ±50 mm Y-axis travel, supporting integrated turning, milling, drilling, tapping, and gear hobbing.
Hydraulic clamping + three-piece curvic coupling, fast tool change, accurate positioning, no lift, prevents coolant and chip ingress.
Key Features:
- High‑density cast‑iron saddle for stable machining
- Linear ball guideways on X/Y axes for friction‑free motion
- Precision ball screws with servo coupling for accuracy
- Hard‑rail Y‑axis for increased rigidity
- 12‑station servo turret for milling, drilling, tapping, and gear cutting
- ±50 mm Y‑axis travel for flexible machining
- Hydraulic clamping and locking for quick tool changes and reliable positioning
Operating Environment and
Performance Requirements
For optimum performance, HORISTAR recommends operating the CNC Lathe Machine in a dry, temperature-controlled indoor environment. Key environmental specifications include:
Power Supply
Ambient Temperature
Relative Humidity
Dust Concentration
Noise Level
Vibration Control
Foundation and Installation Requirements
The foundation must meet the machine's installation requirements, and vibration sources should be minimized (below 0.5 G). Proper environmental control preserves the high precision performance and mechanical lifespan of the CNC Lathe Machine.
CNC Lathe Machining Samples

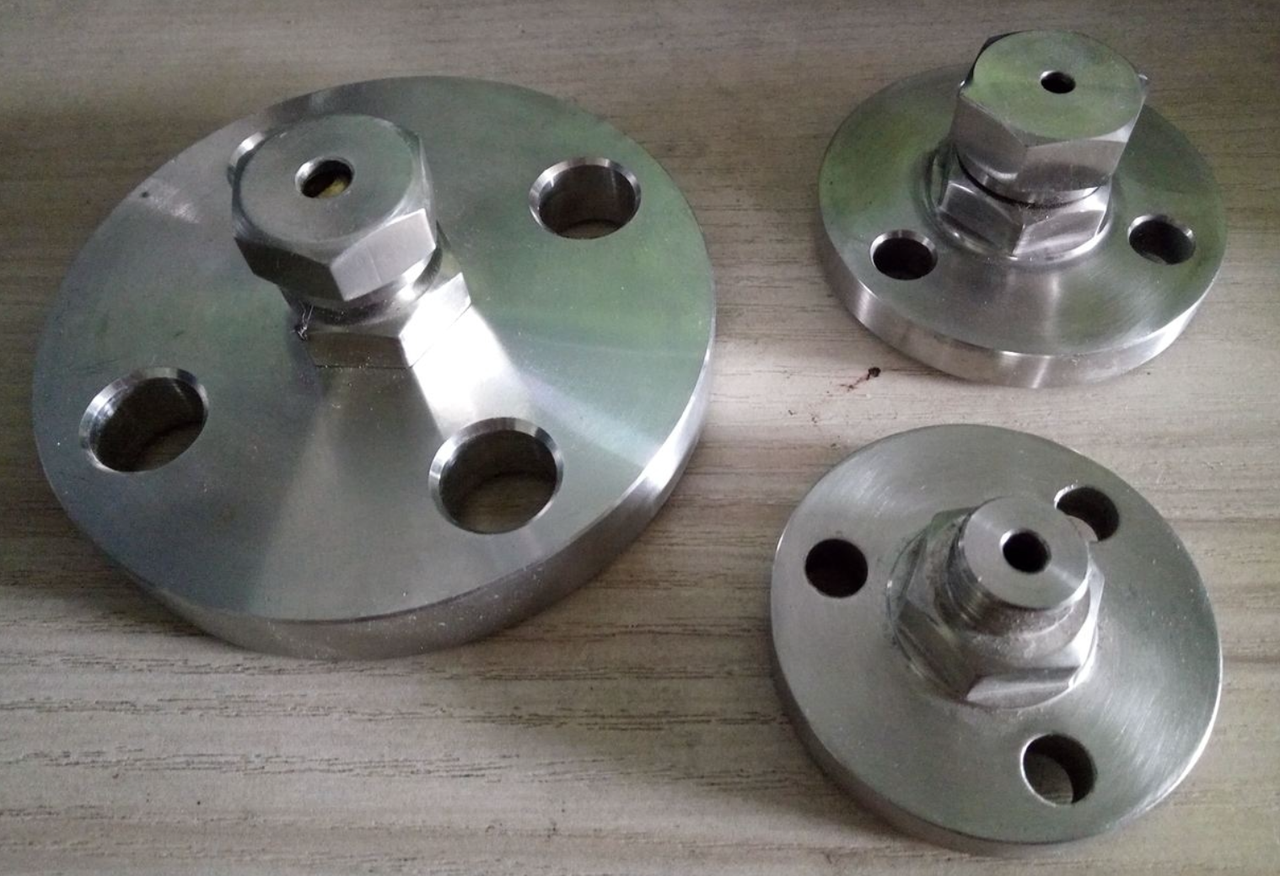

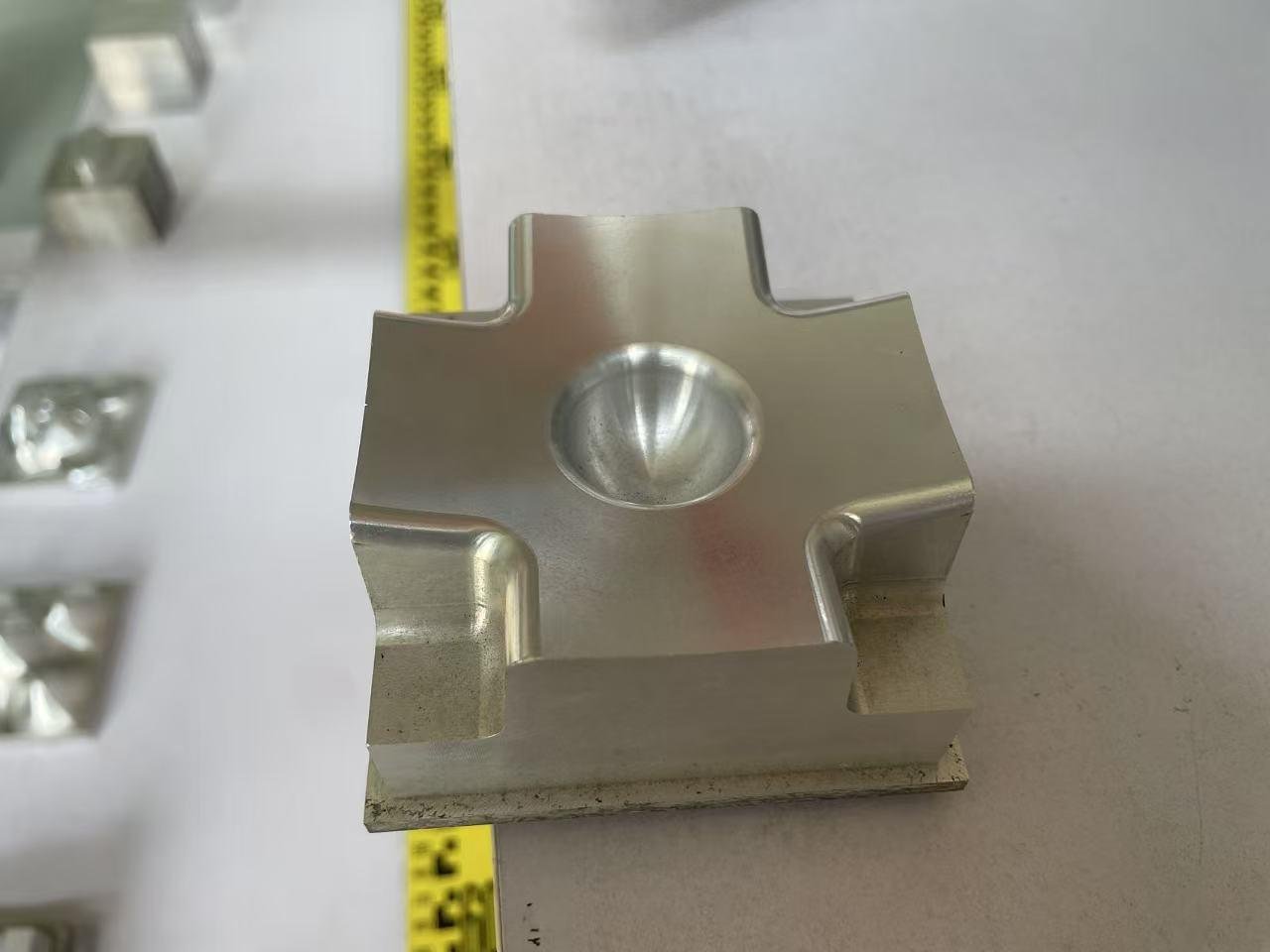

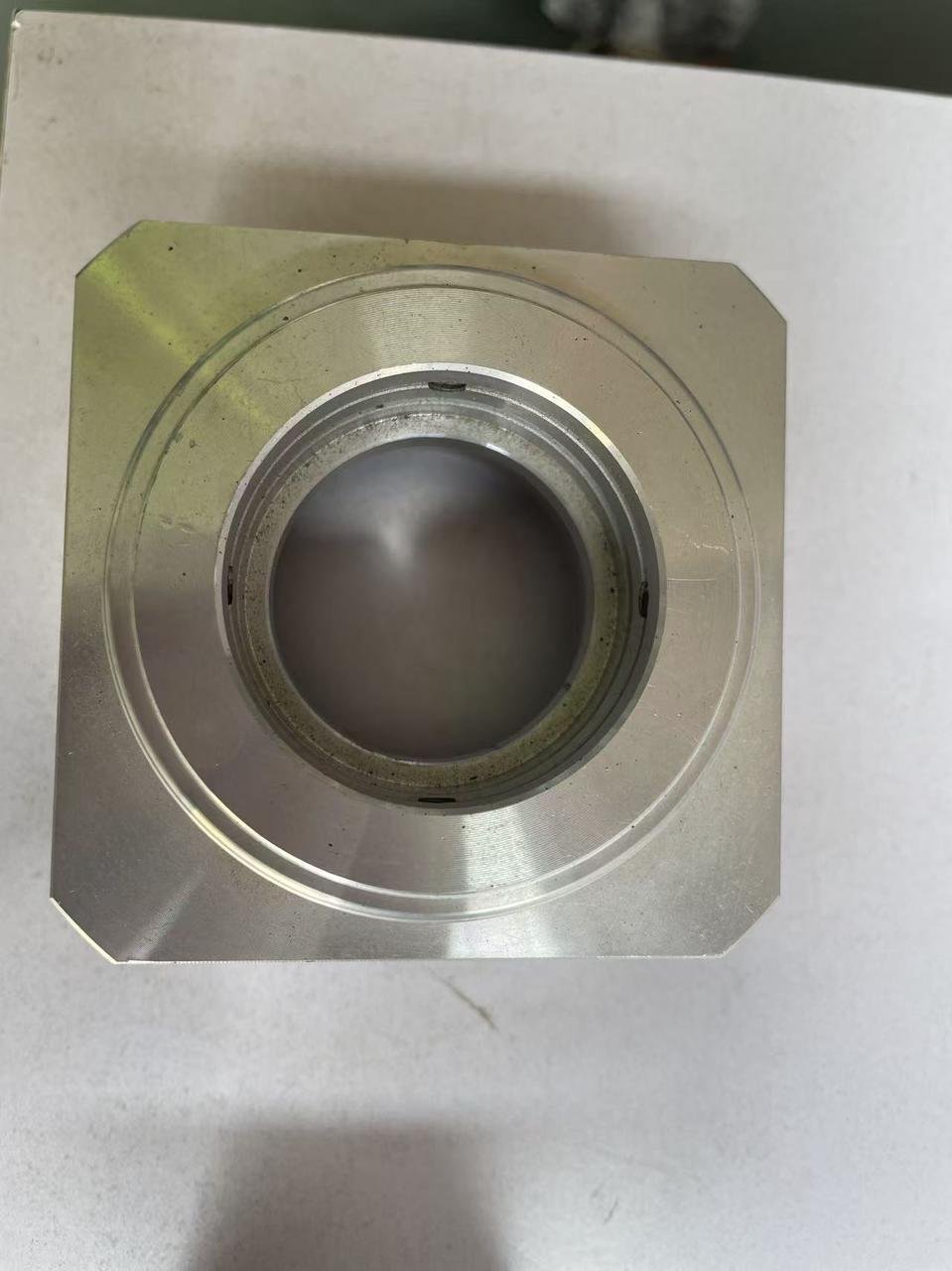

Real machining samples produced by HORISTAR CNC Lathe Machine, showcasing high accuracy, smooth surface finish, and stable performance across various metal materials and part geometries.
Want to see more machining samples or discuss your specific requirements?
Contact Our Technical Team →Why Choose the HORISTAR CNC Lathe Machine
Superior Mechanical Rigidity
The 45° bed structure ensures vibration-free, stable machining even under heavy loads.
High Accuracy
Compliance with GB/T16462-2007 precision standards guarantees reliable performance.
Intelligent Control
Electric spindle design and AC vector control allow flexible speed management.
High Efficiency
Dual spindles and servo-driven axes reduce idle time and cycle duration.
User-friendly Operation
Simplified interface, intuitive controls, and multi-level safety protection.
Customizable Options
Different chuck sizes, tool holders, and conveyor configurations available.
